Home
>>
Kia
>>
1995
>>
Sephia Sedan L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Alarm Module, (Vehicle Antitheft)
>>
From VIN S5220000
From VIN S5220000

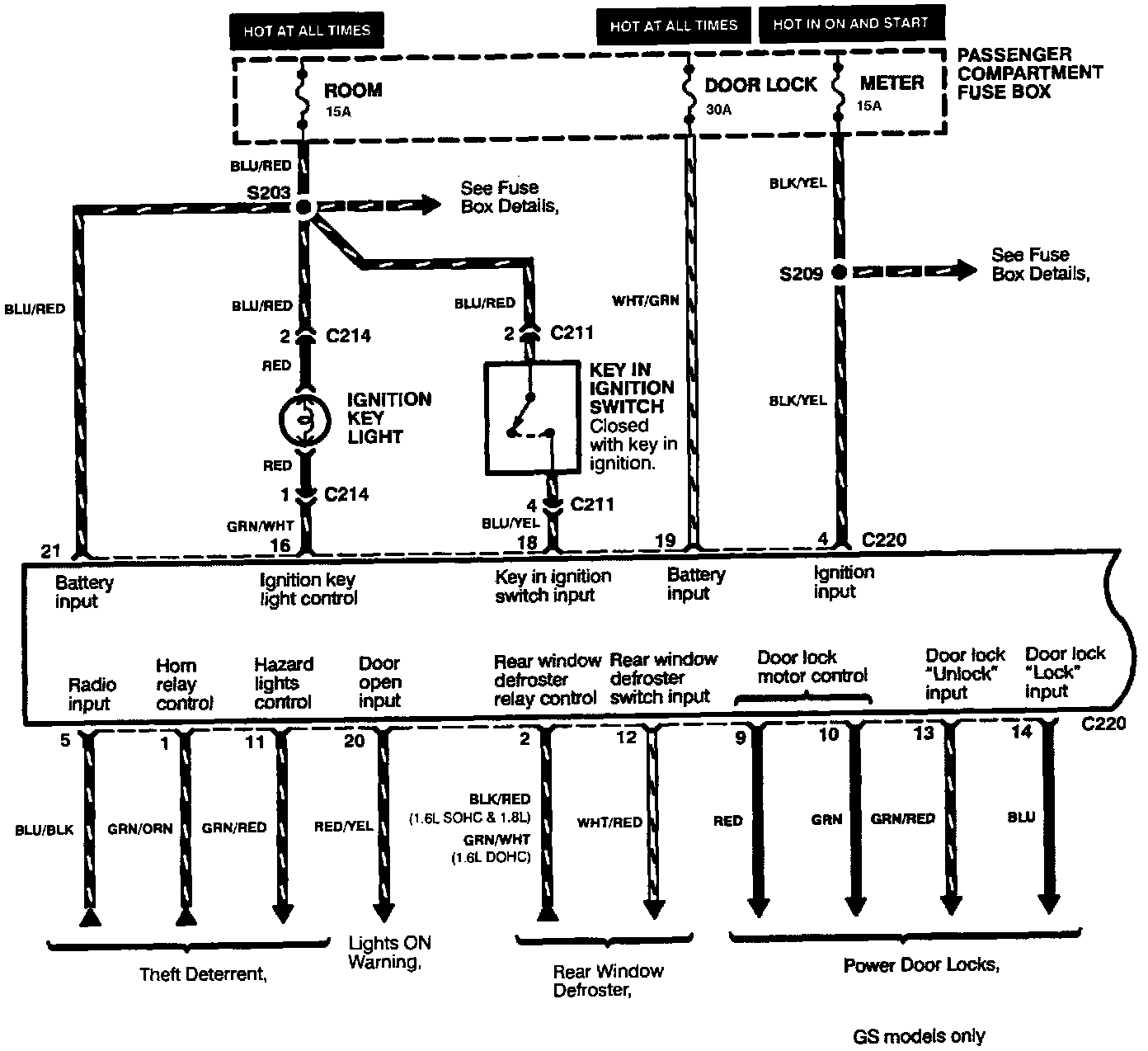

Electronic Time Alarm Control Module (Part 1 Of 2):

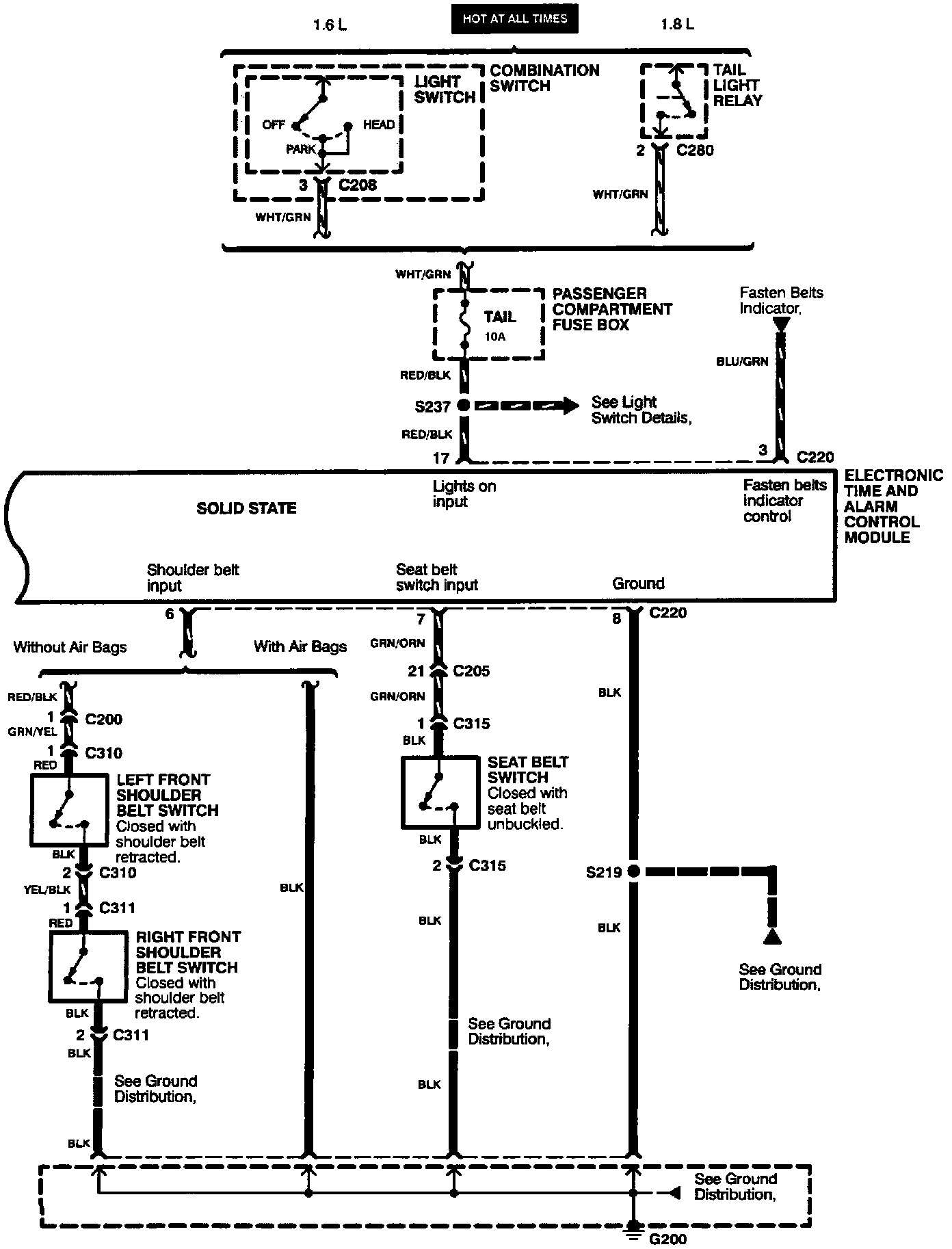

Electronic Time Alarm Control Module (Part 2 Of 2):
