Home >> Kia >> 1995 >> Sephia Sedan L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> From VIN S5220000 >> 2-Pin Connectors

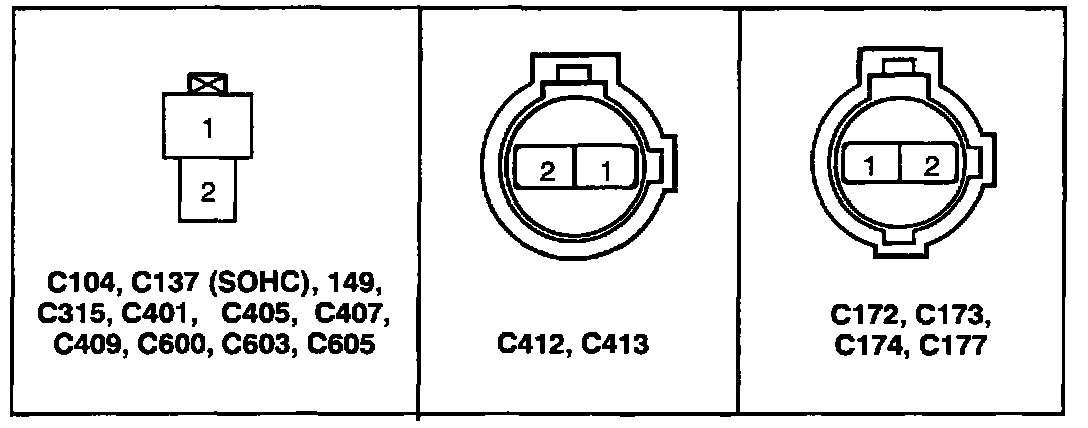

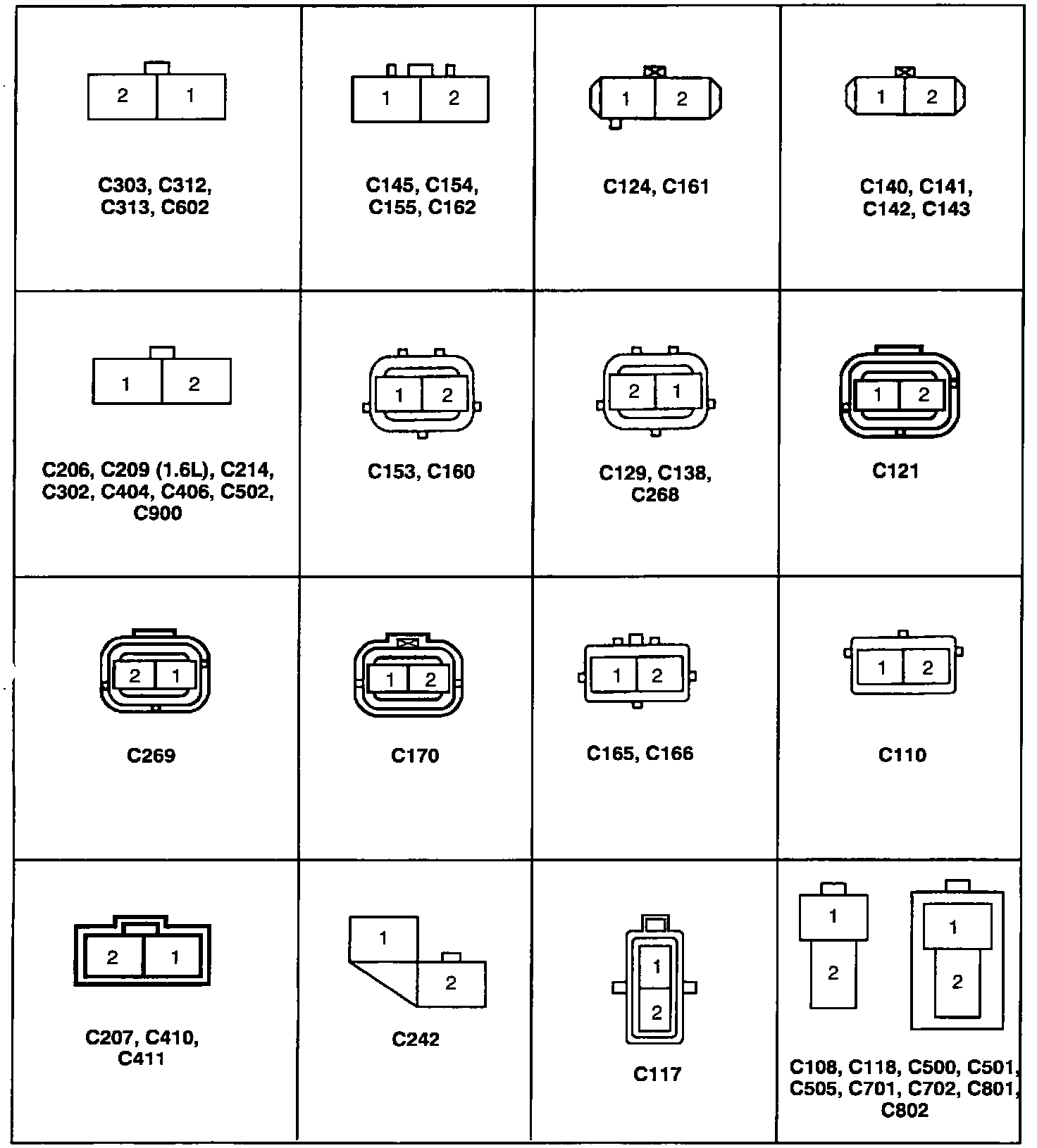

2-Pin Connectors

2 Pin Connectors:



2 Pin Connectors:
