From VIN S5220000

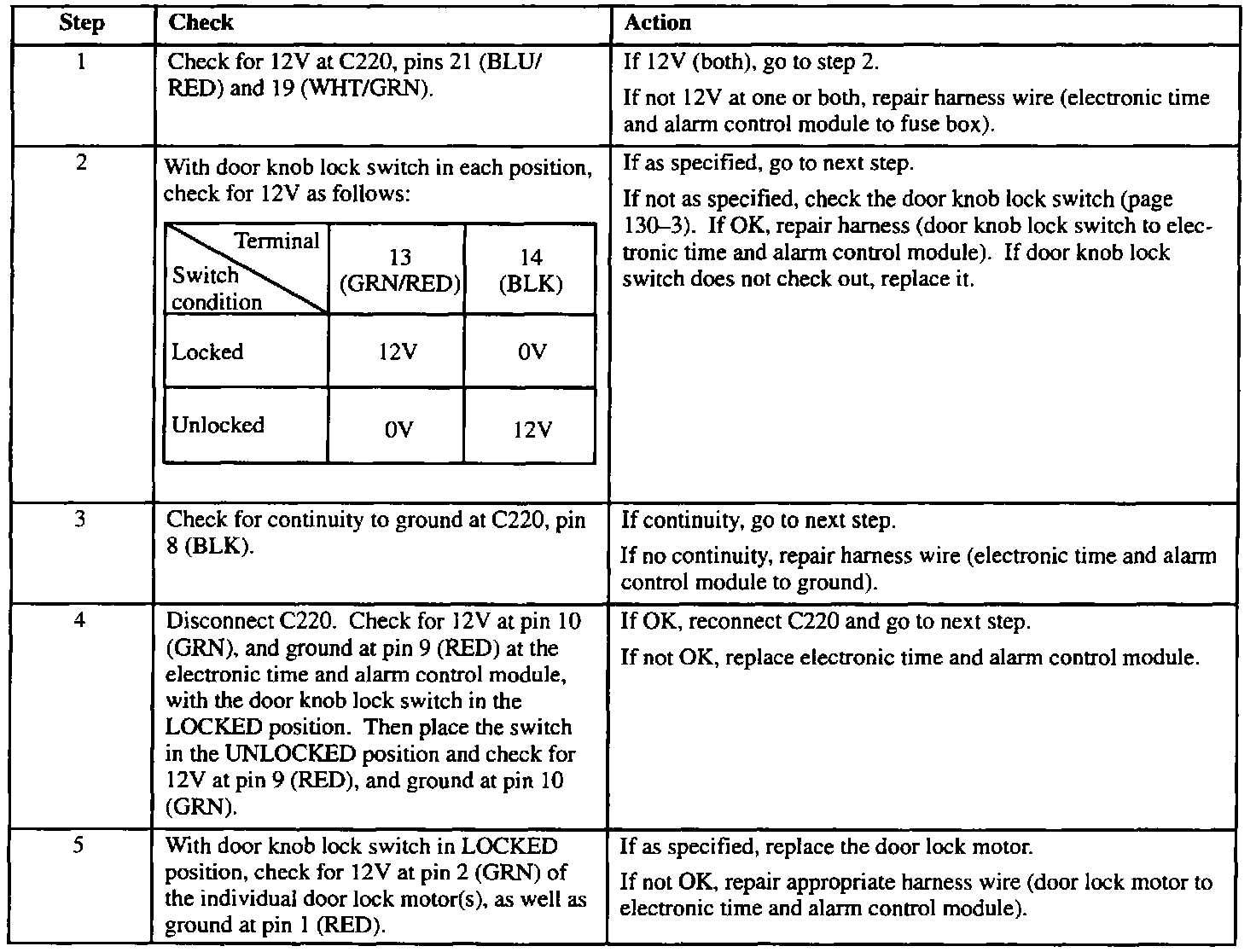

Troubleshooting:




Preliminary Check: Check condition of ROOM and DOOR LOCK fuses. If either fuse is open, locate and repair source of overload. Replace fuse. If only one (1) door lock does not function, skip steps 1-4 and perform step 5 for that specific door.
