Testing and Inspection
>>
From VIN S5220000
From VIN S5220000

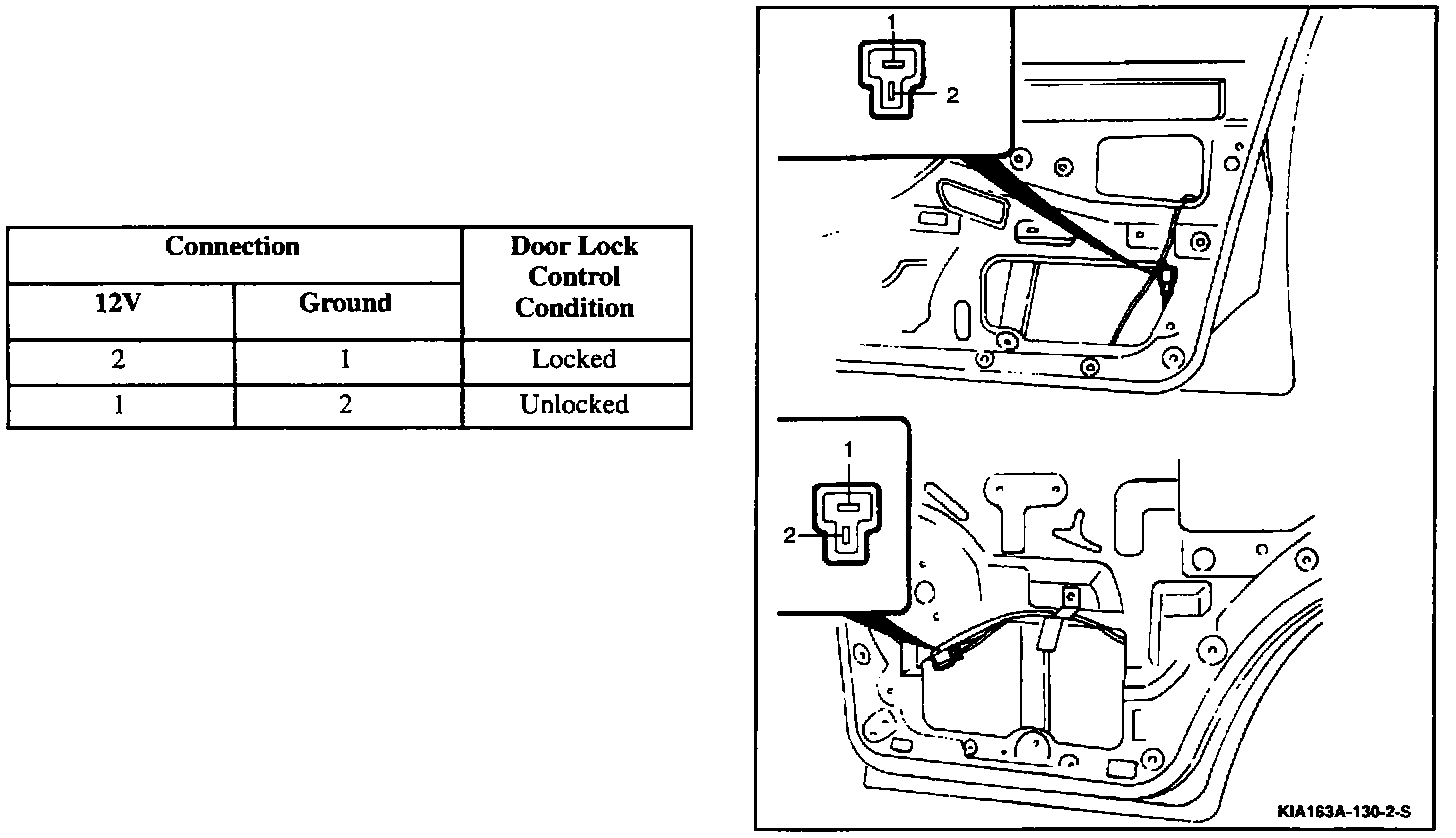

Circuit Testing-Door Lock Motor:
1.
Disconnect the door lock motor connector.
2.
Check operation of the door lock motor as indicated.
3.
If the door lock motor does not operate as specified, replace the door lock motor.
