Home >> Kia >> 1995 >> Sephia Sedan L4-1.8L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Diagrams >> Electrical Diagrams >> Up to VIN S5219999 >> AM/FM 2 Speaker System

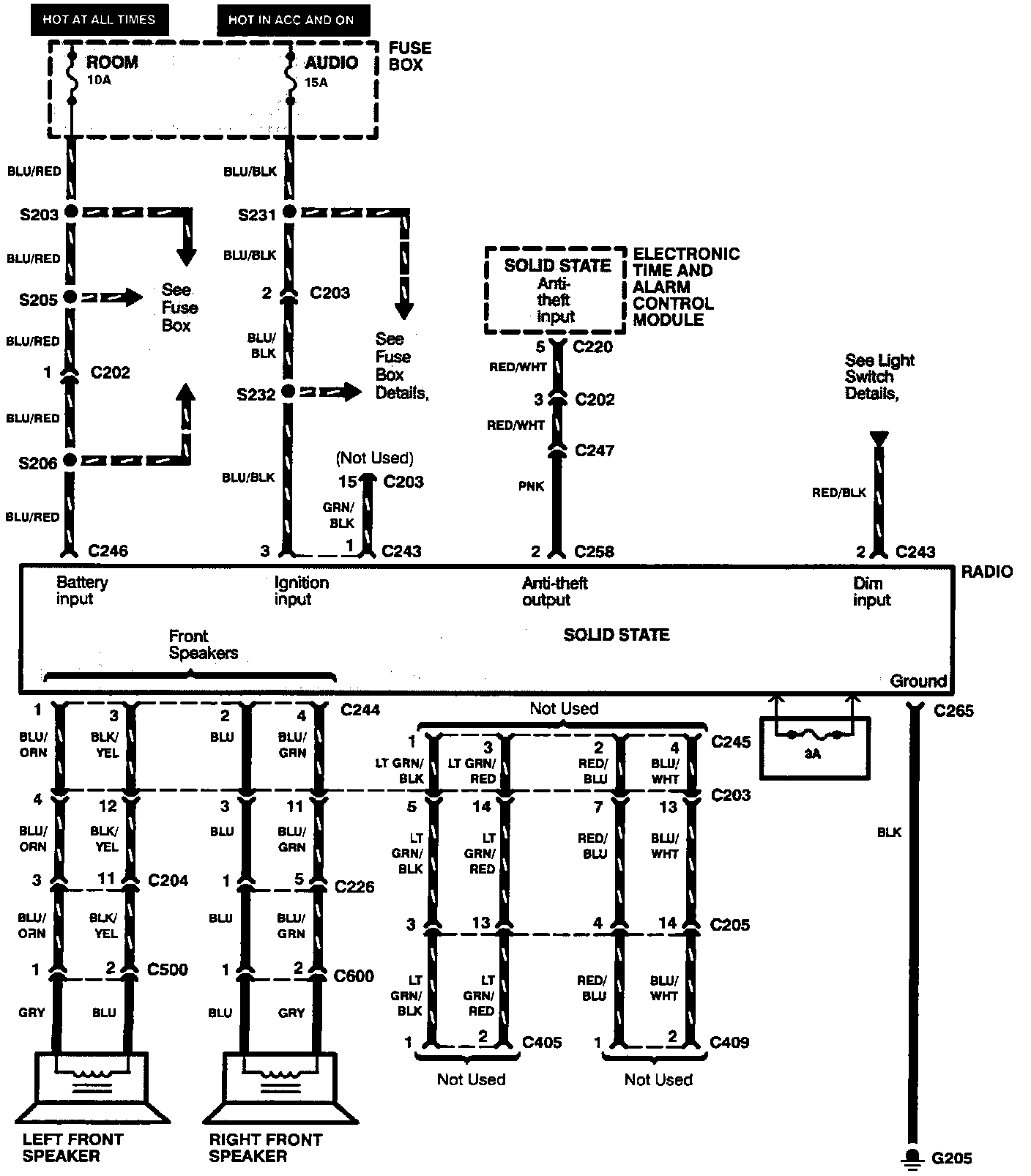

AM/FM 2 Speaker System

Audio System (AM/FM 2 Speaker System):
