Up to VIN S5219999

Electronic Time Alarm Control Module-Circuit Testing:

Alarm System-Circuit Testing:

Circuit Testing-Electronic Time And Alarm Control Module:

Alarm System-Circuit Testing:

Circuit Testing-Electronic Time And Alarm Control Module:

Alarm System-Circuit Testing:

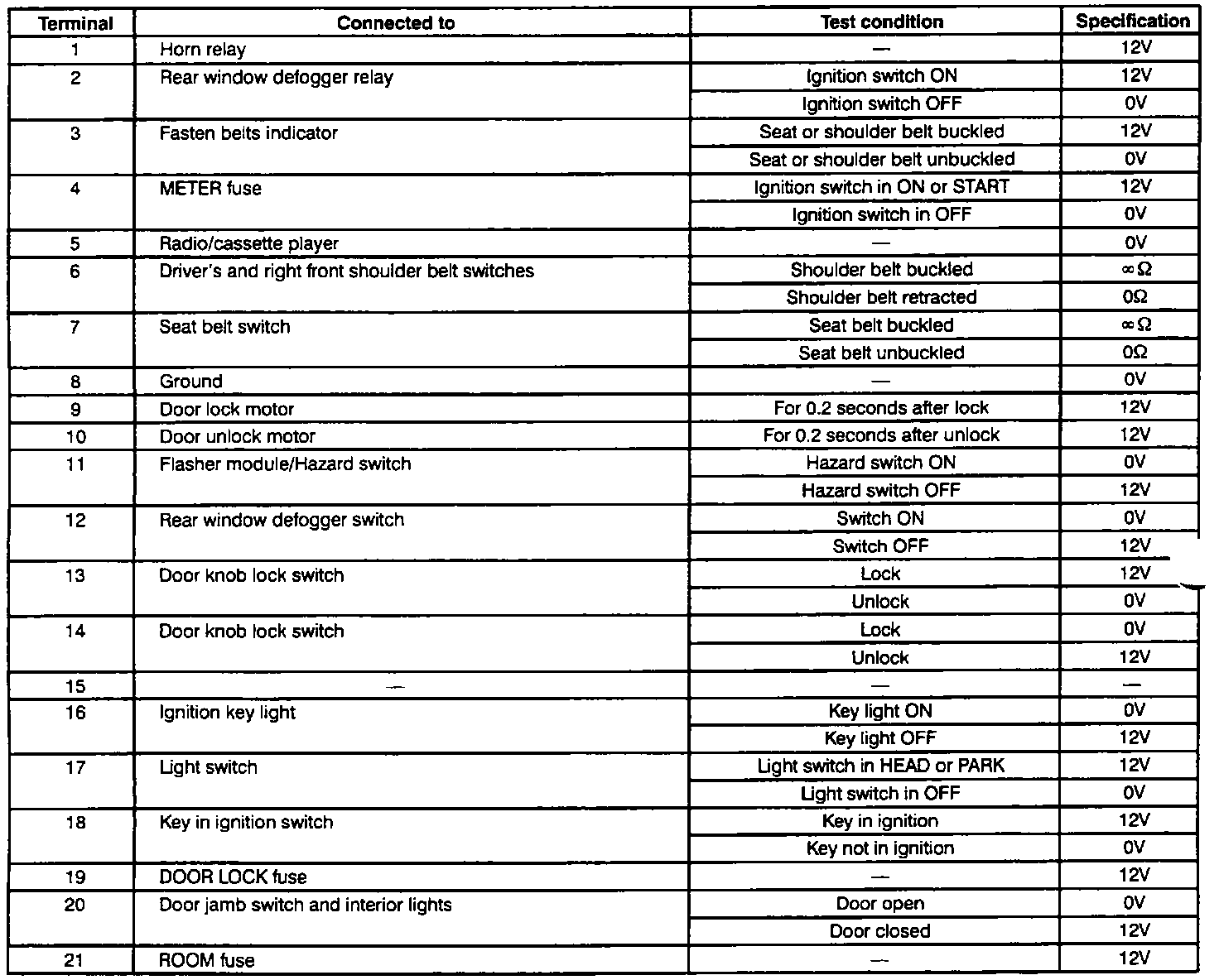

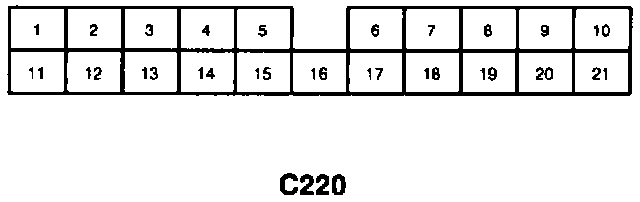

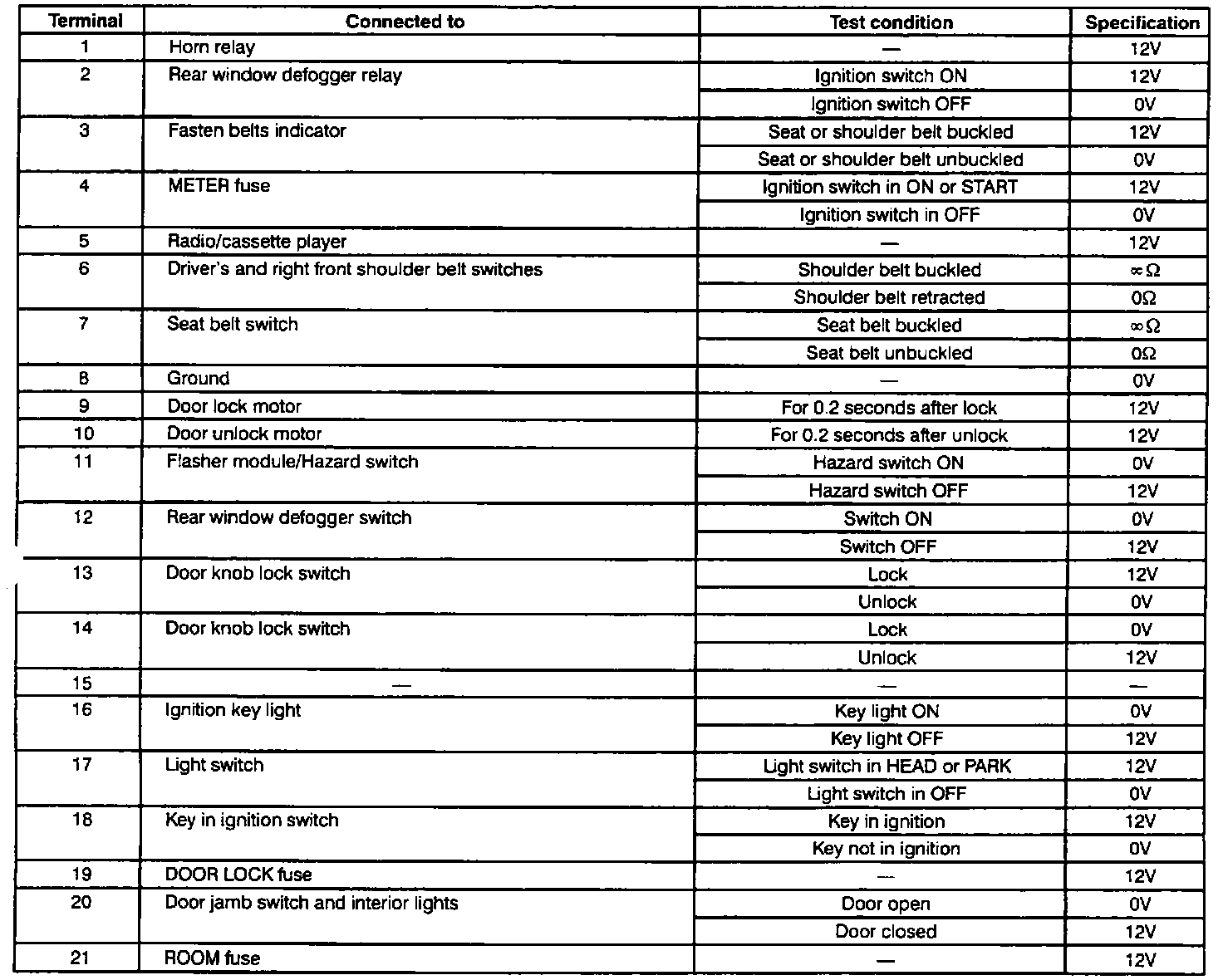

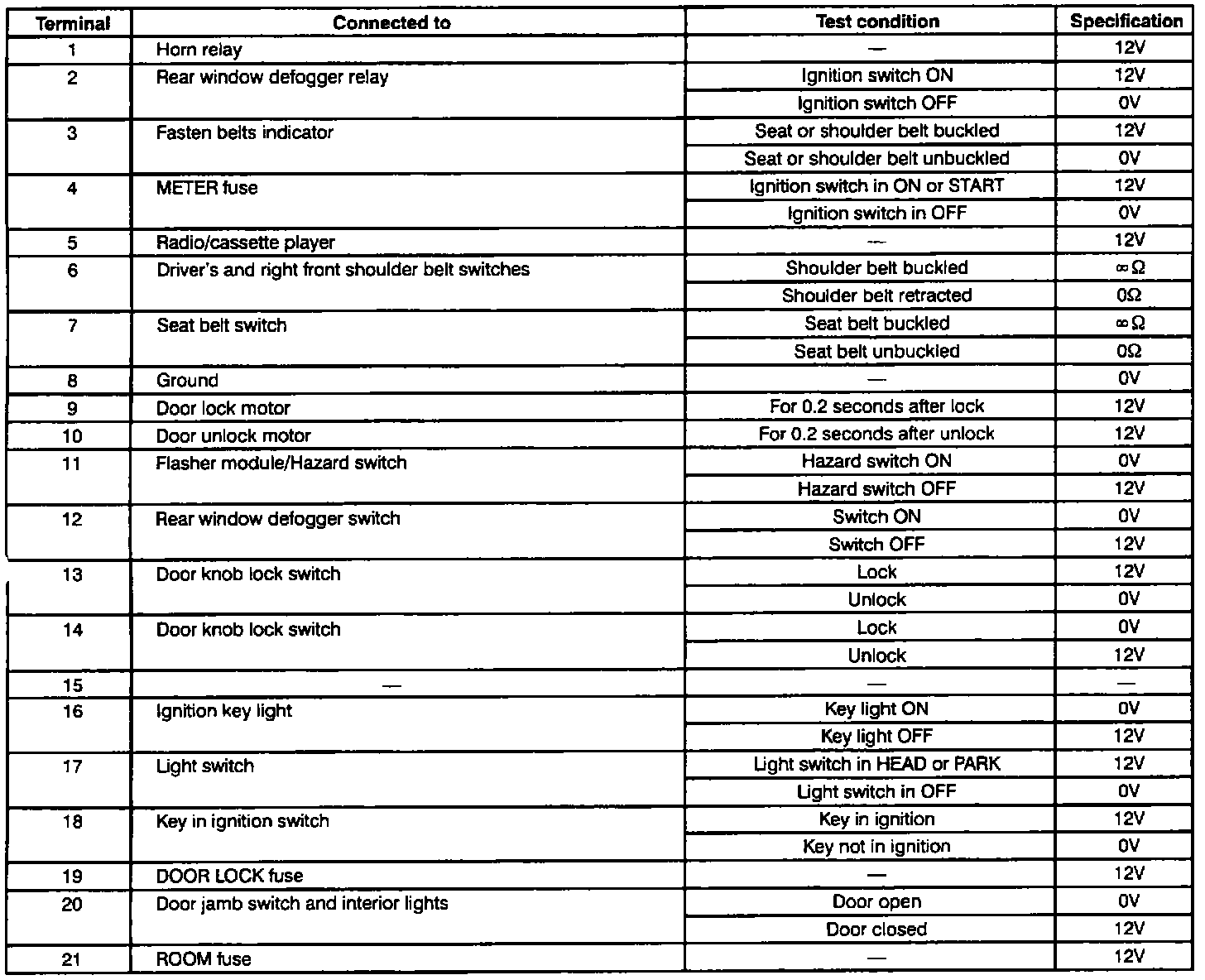

Locate the electronic time and alarm control module and check for voltage or continuity with connector connected. Replace as necessary.
