Circuit Testing

Circuit Testing-Ignition Switch:

1. Disconnect the ignition switch connector C211.

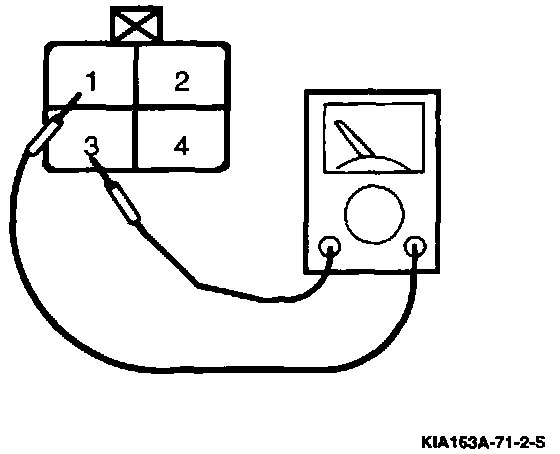

2. Connect an ohmmeter between pins 1 (RED/BLK) and 3 (BLK) of the ignition switch.
3. When switch is in OFF, ACC, or ON, the ohmmeter should indicate no continuity.
4. Turn switch to START. Ohmmeter should indicate continuity.
5. If continuity is not as specified, replace switch.
