Home >> Kia >> 1995 >> Sephia Sedan L4-1.6L SOHC 16V >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Cooling System >> Engine - Coolant Temperature Sensor/Switch >> Locations >> From VIN S5220000

From VIN S5220000

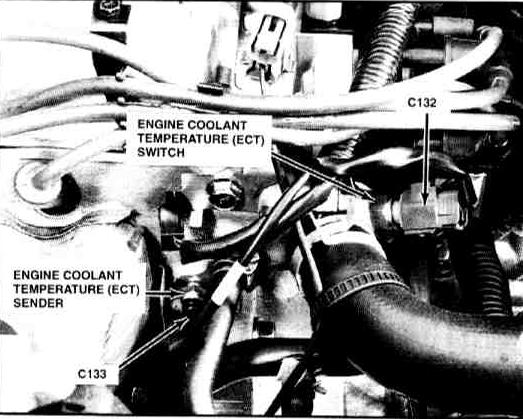

ENGINE COOLANT TEMPERATURE SENSOR




Center of Engine






Left Front of Engine
