Home >> Kia >> 1995 >> Sephia Sedan L4-1.6L SOHC 16V >> Repair and Diagnosis >> Powertrain Management >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Pin Information >> C248 >> Pins 1-10

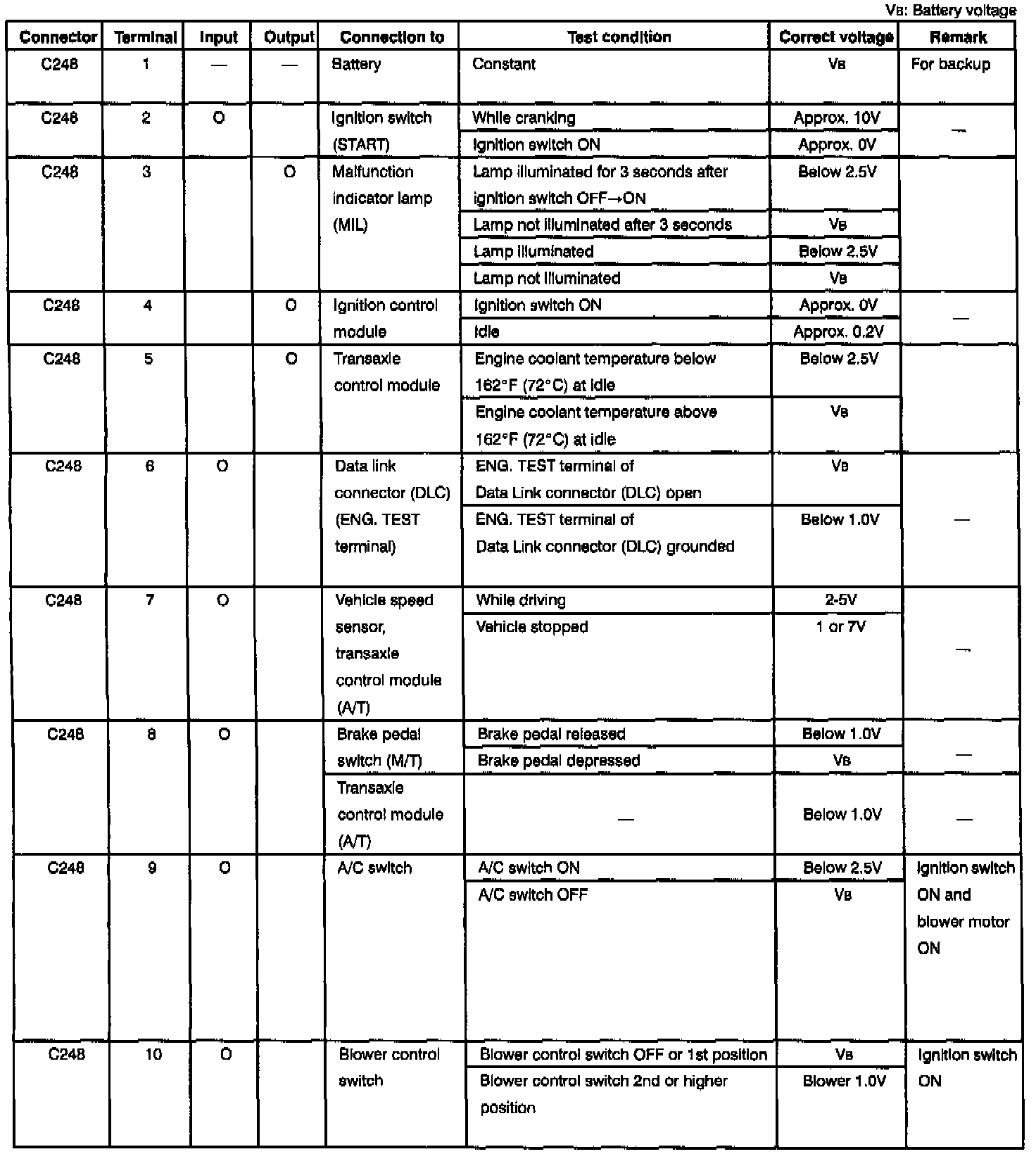

Pins 1-10

Description:
