Home >> Kia >> 1995 >> Sephia Sedan L4-1.6L SOHC 16V >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Charts >> 8 - Rough Idle/Engine Stalls at Idle, Always

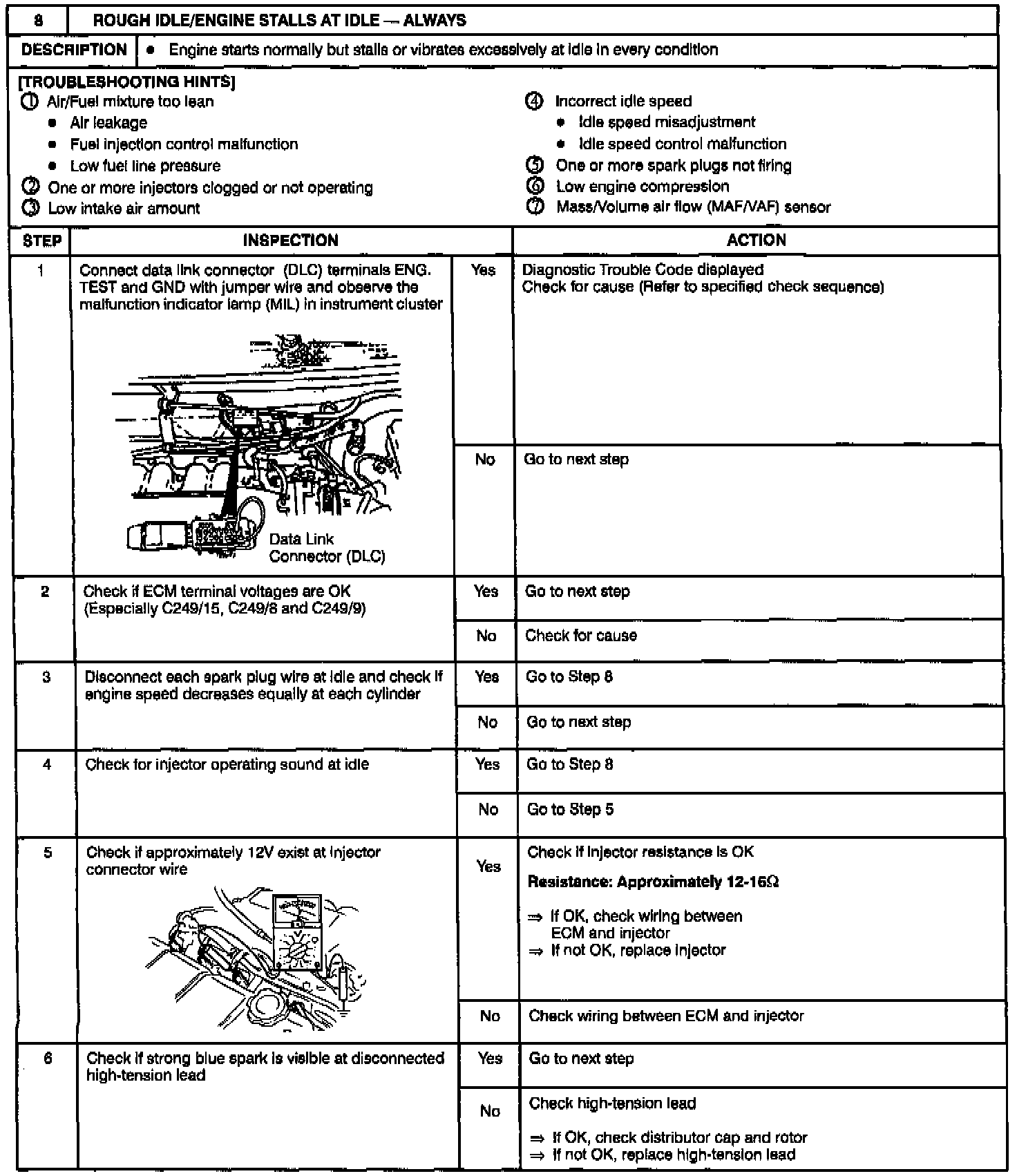

8 - Rough Idle/Engine Stalls at Idle, Always

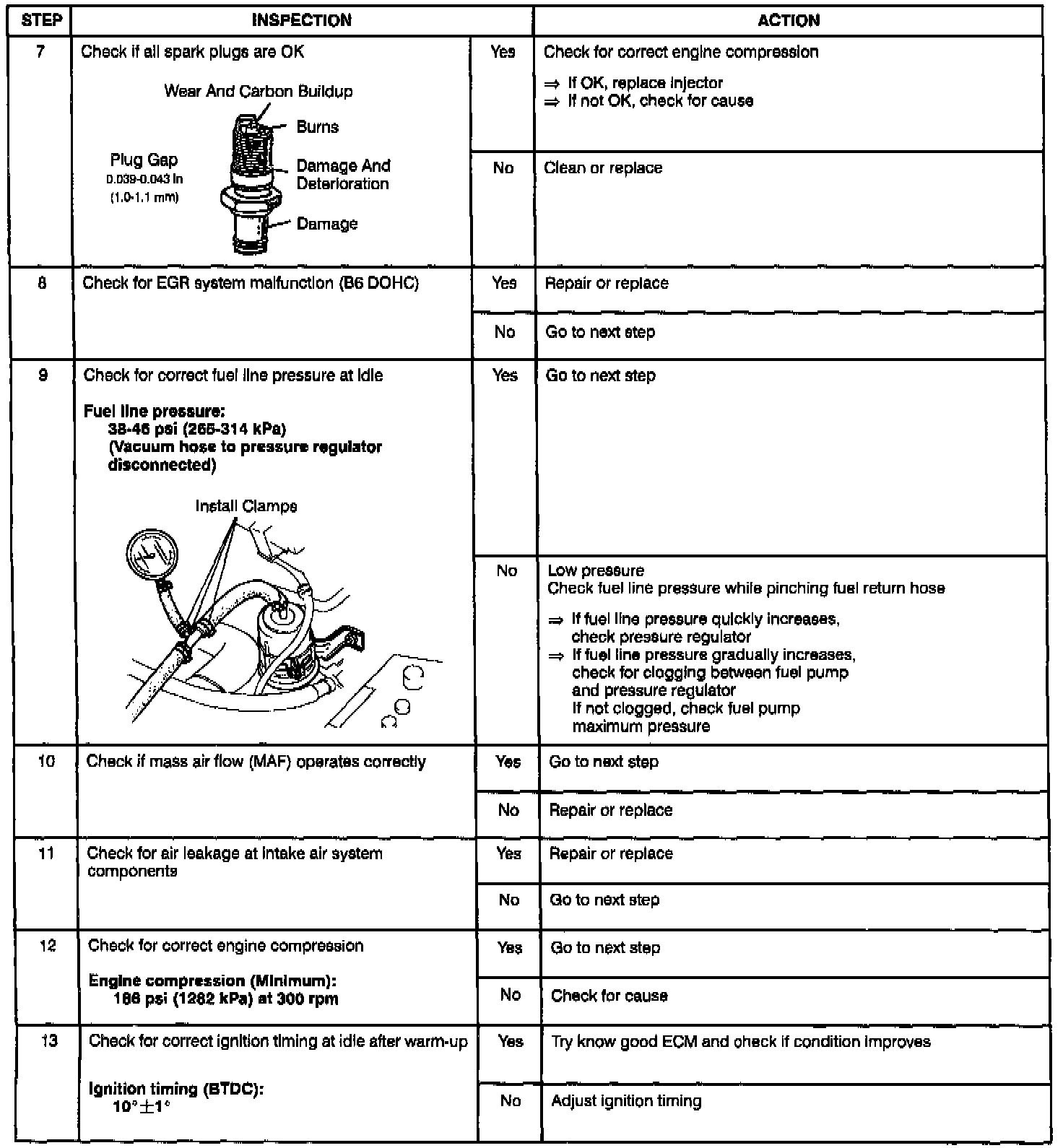

Diagnostic Chart:



Diagnostic Chart:
