Home >> Kia >> 1995 >> Sephia Sedan L4-1.6L SOHC 16V >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Charts >> 14 - Idle Moves Up and Down/Idle Hunting

14 - Idle Moves Up and Down/Idle Hunting

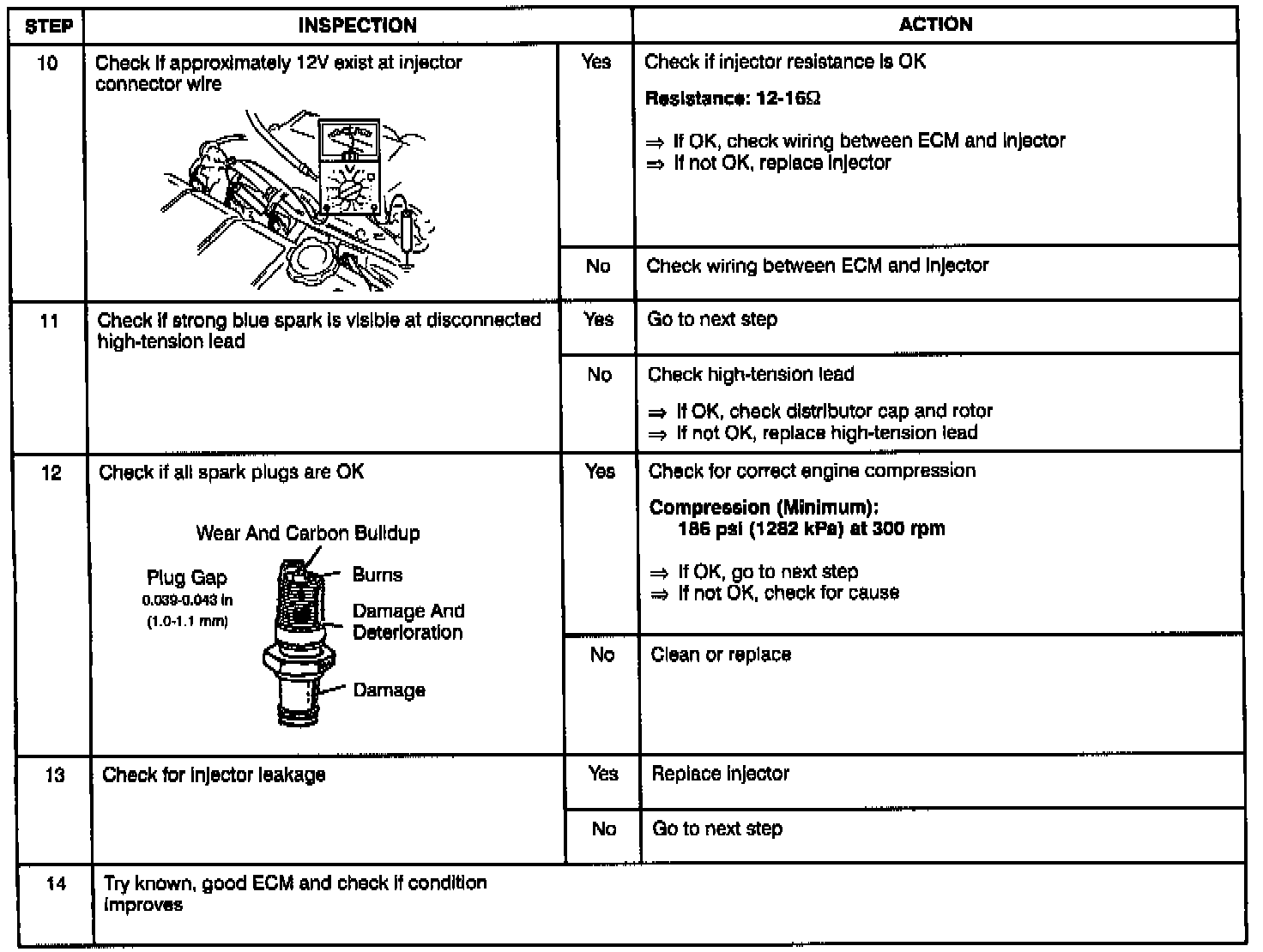

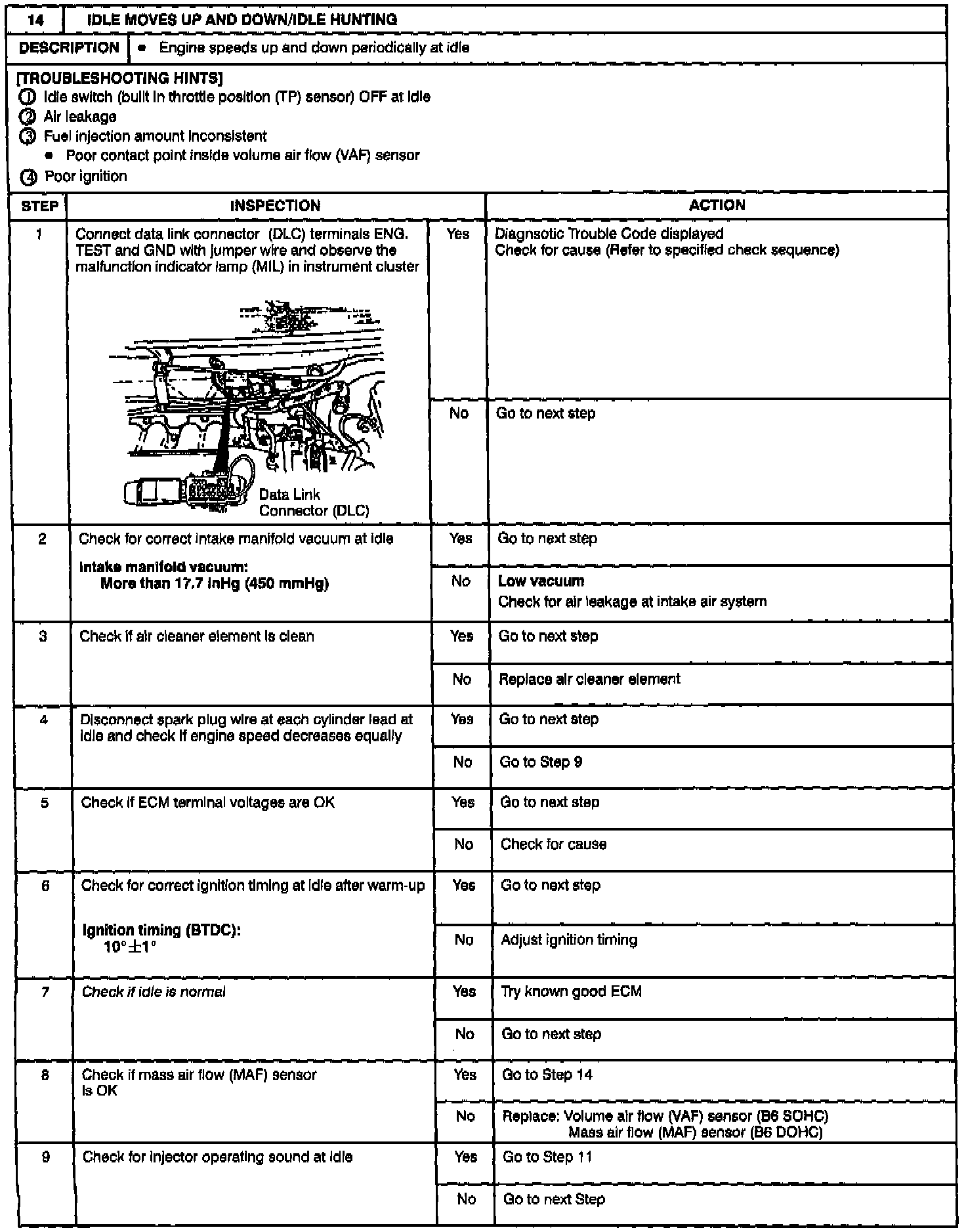

Diagnostic Chart:



Diagnostic Chart:
