Manual Transmission

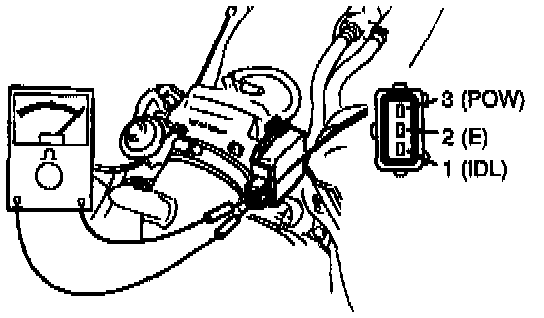

Test - Connector View:

Adjustment:

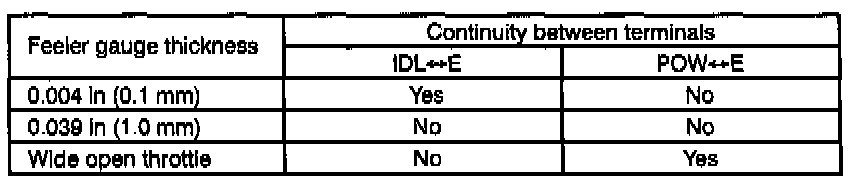

Spec Chart:

INSPECTION
1. Disconnect the connector from the throttle position (TP) sensor.
2. Connect an ohmmeter to the throttle position (TP) sensor.
3. Insert a feeler gauge between the throttle stop screw and the stop lever and check the continuity between terminals.
