Home >> Kia >> 1995 >> Sephia Sedan L4-1.6L SOHC 16V >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Description and Operation >> Component Descriptions

Component Descriptions

Descriptions:

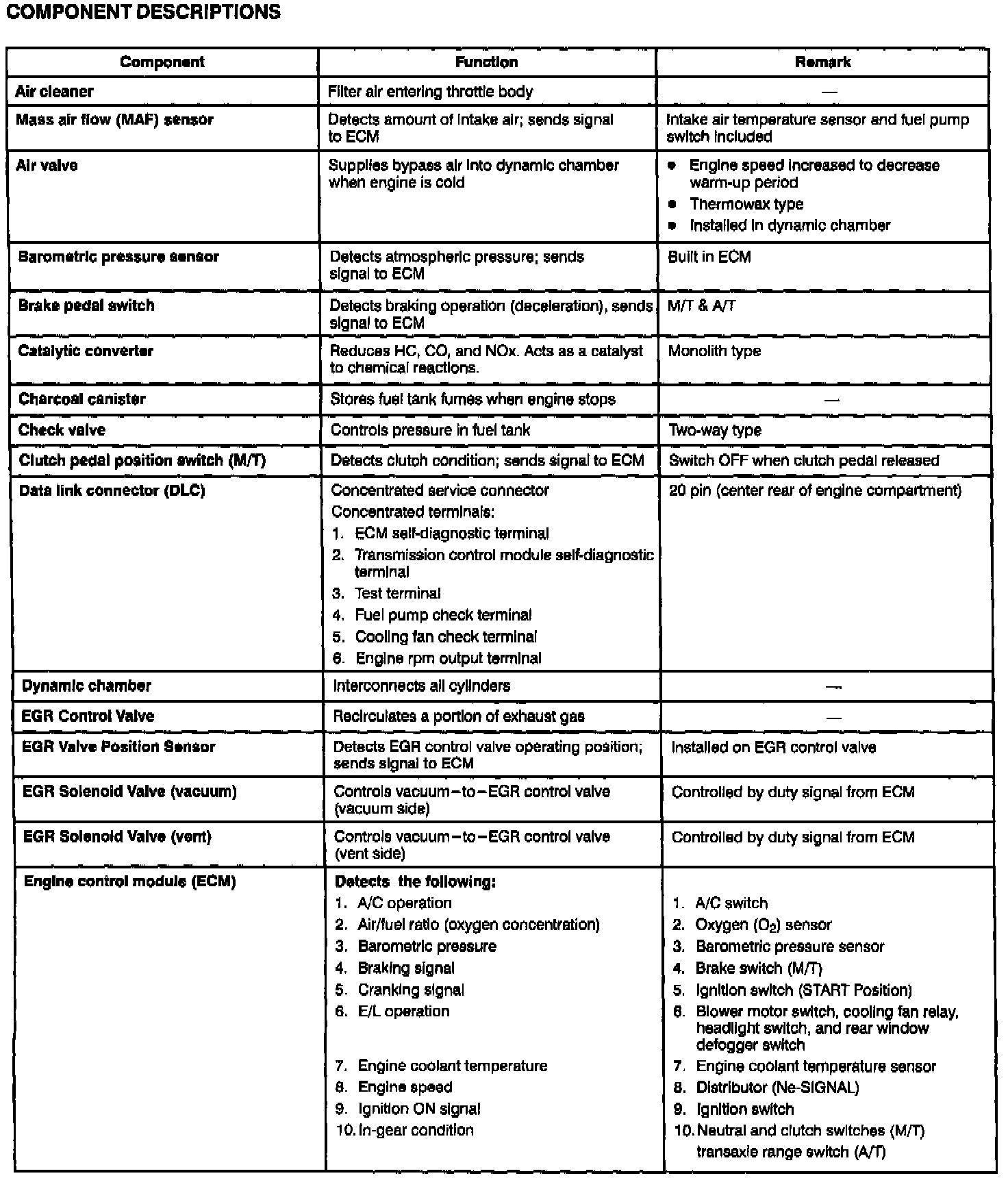

AIR CLEANER - ENGINE CONTROL MODULE


Descriptions:

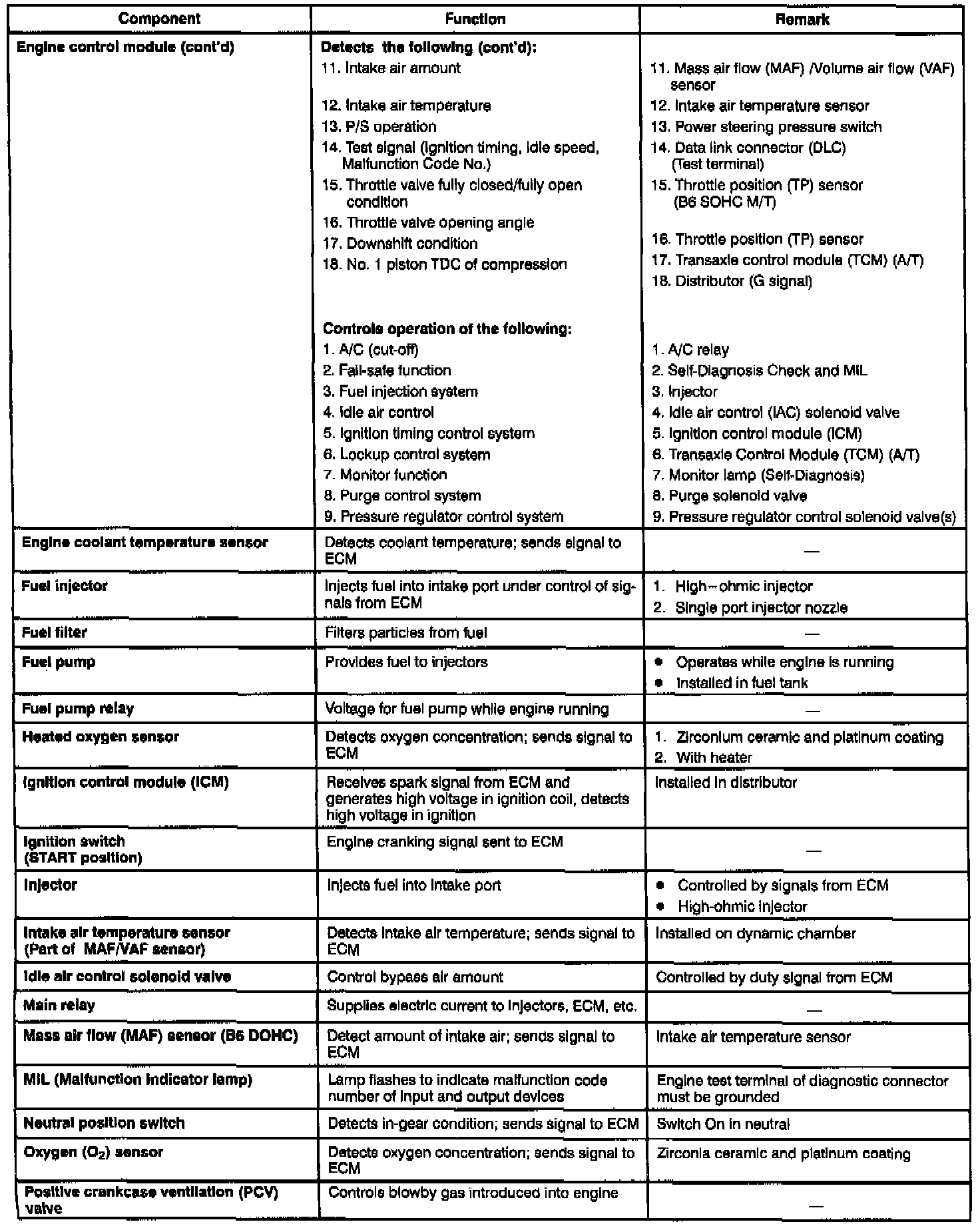

ENGINE CONTROL MODULE (CONT) - PCV VALVE

Descriptions:

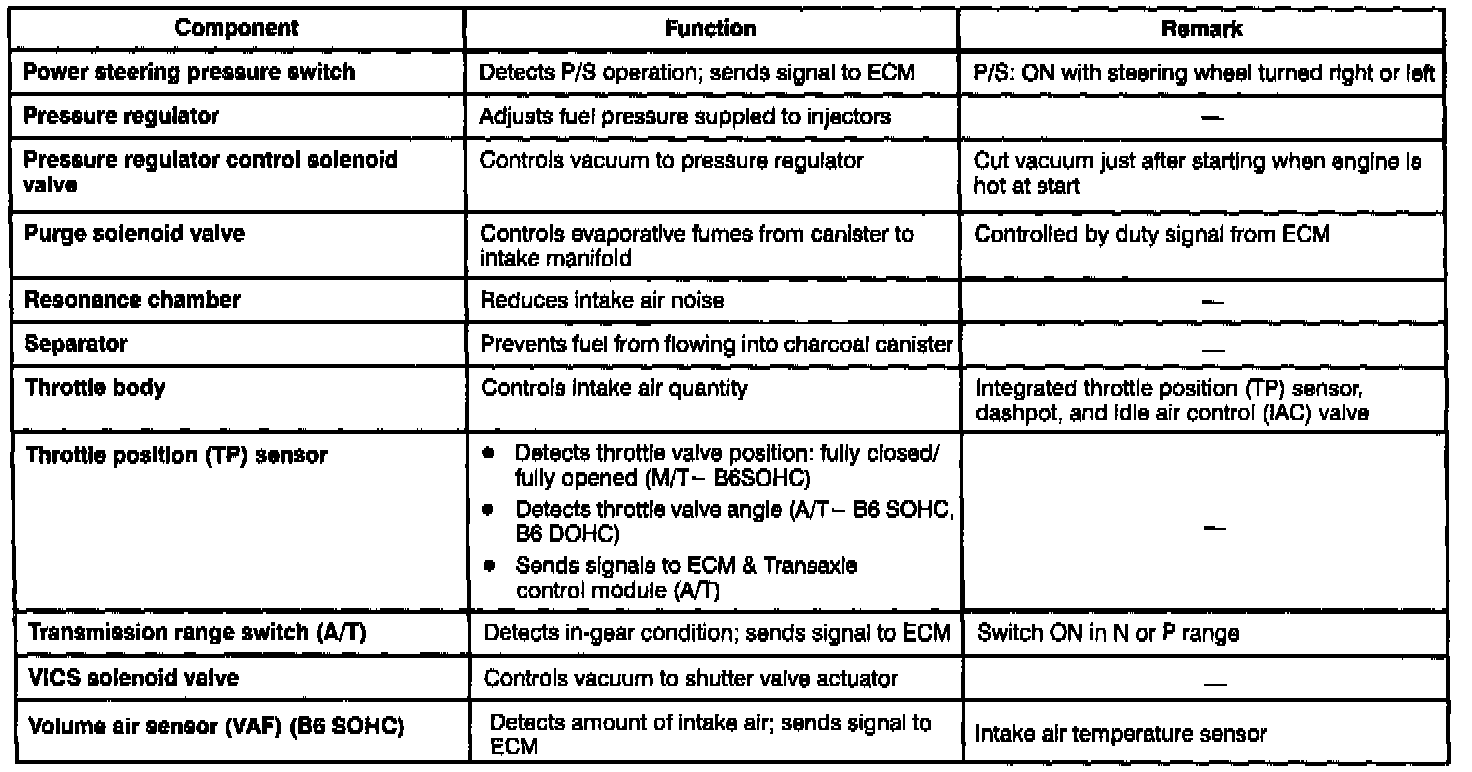

POWER STEERING PRESS. SWITCH - VOLUME AIR SENSOR (VAF)
