FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Kia
>>
1995
>>
Sephia Sedan L4-1.6L SOHC 16V
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Engine Control System
>>
DTC 17
DTC 17

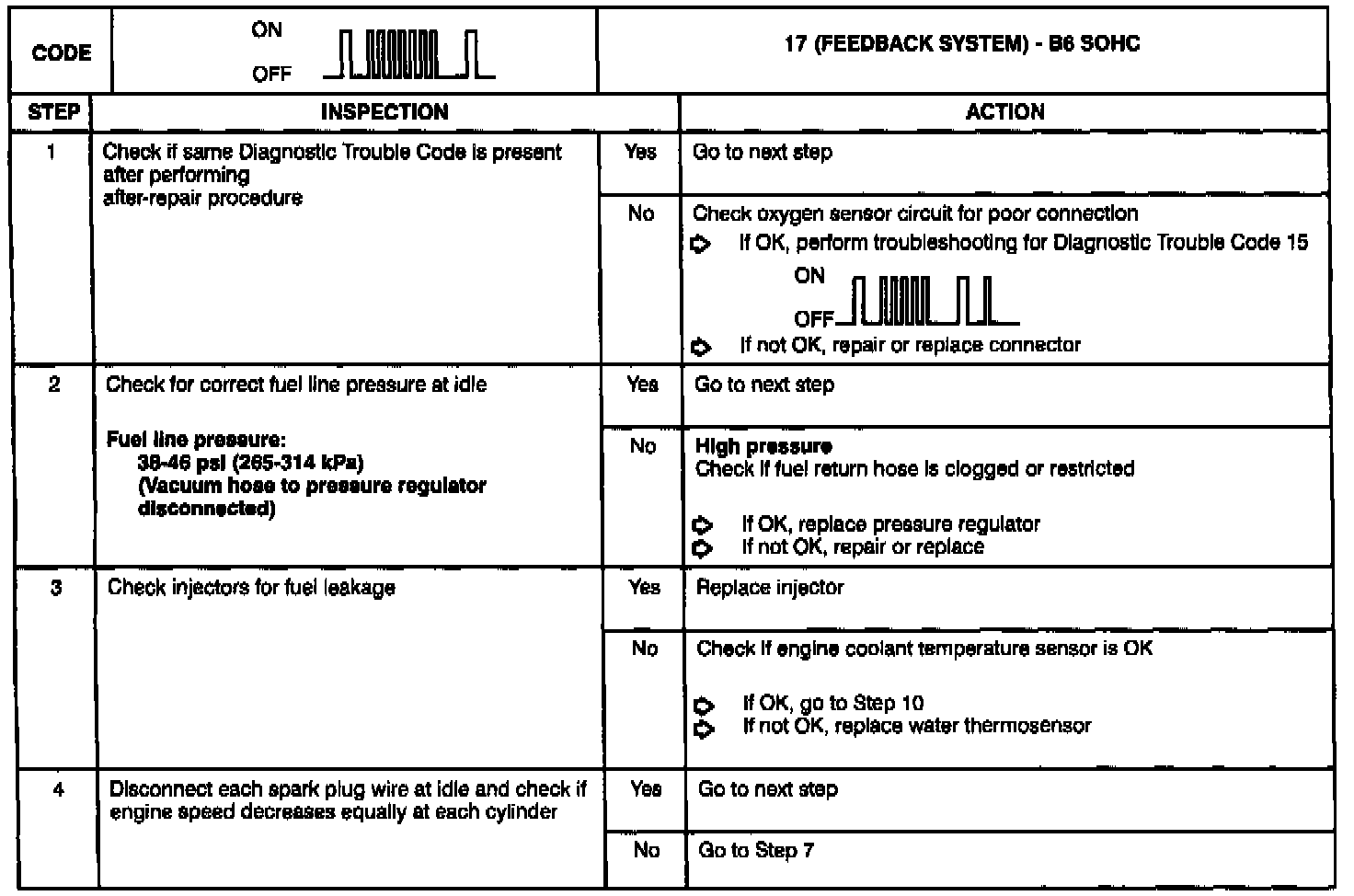

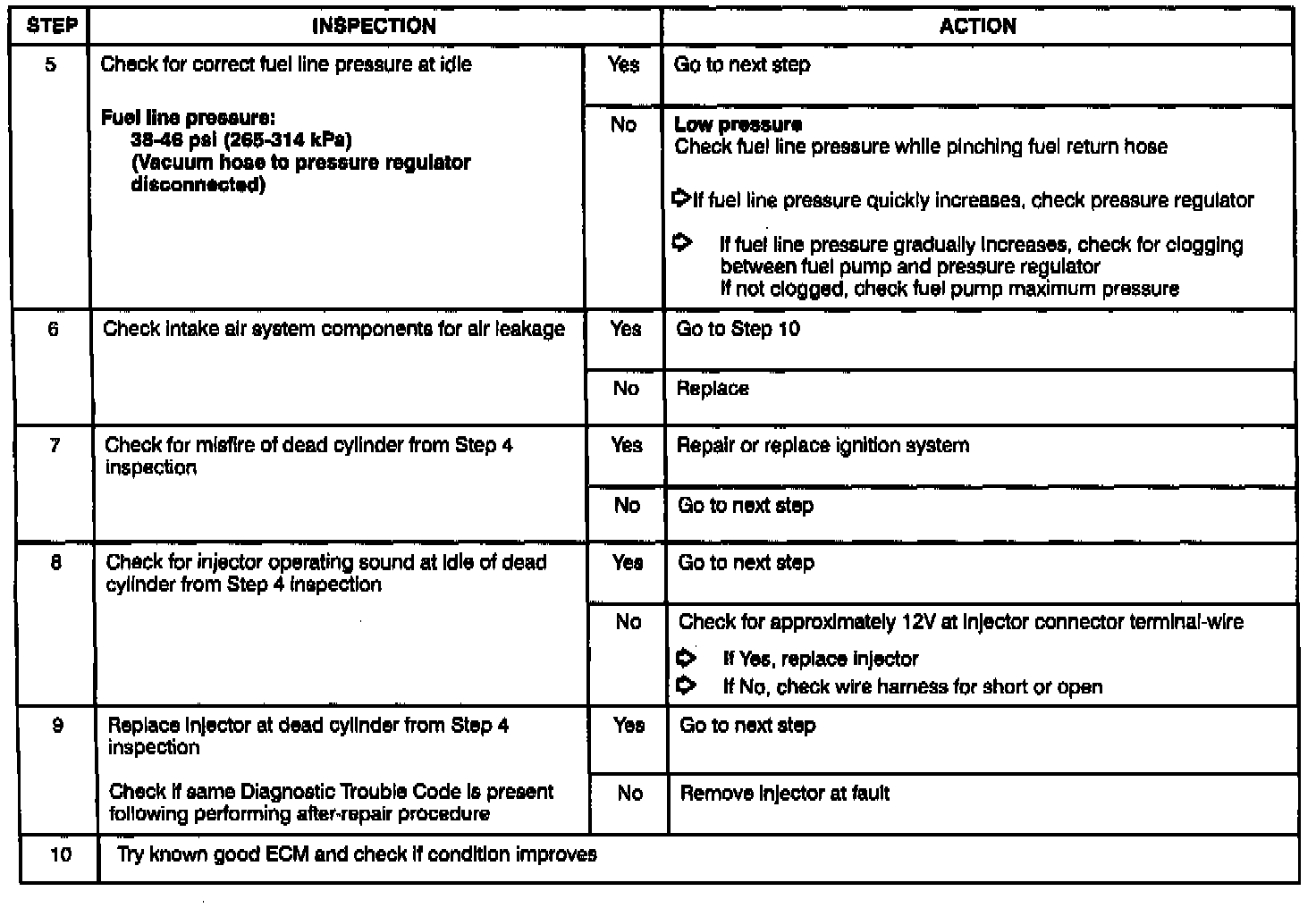

Diagnostic Chart:
Diagnostic Chart:
Wiring Diagram:
