Stop, Front Side Marker, Park and Tail

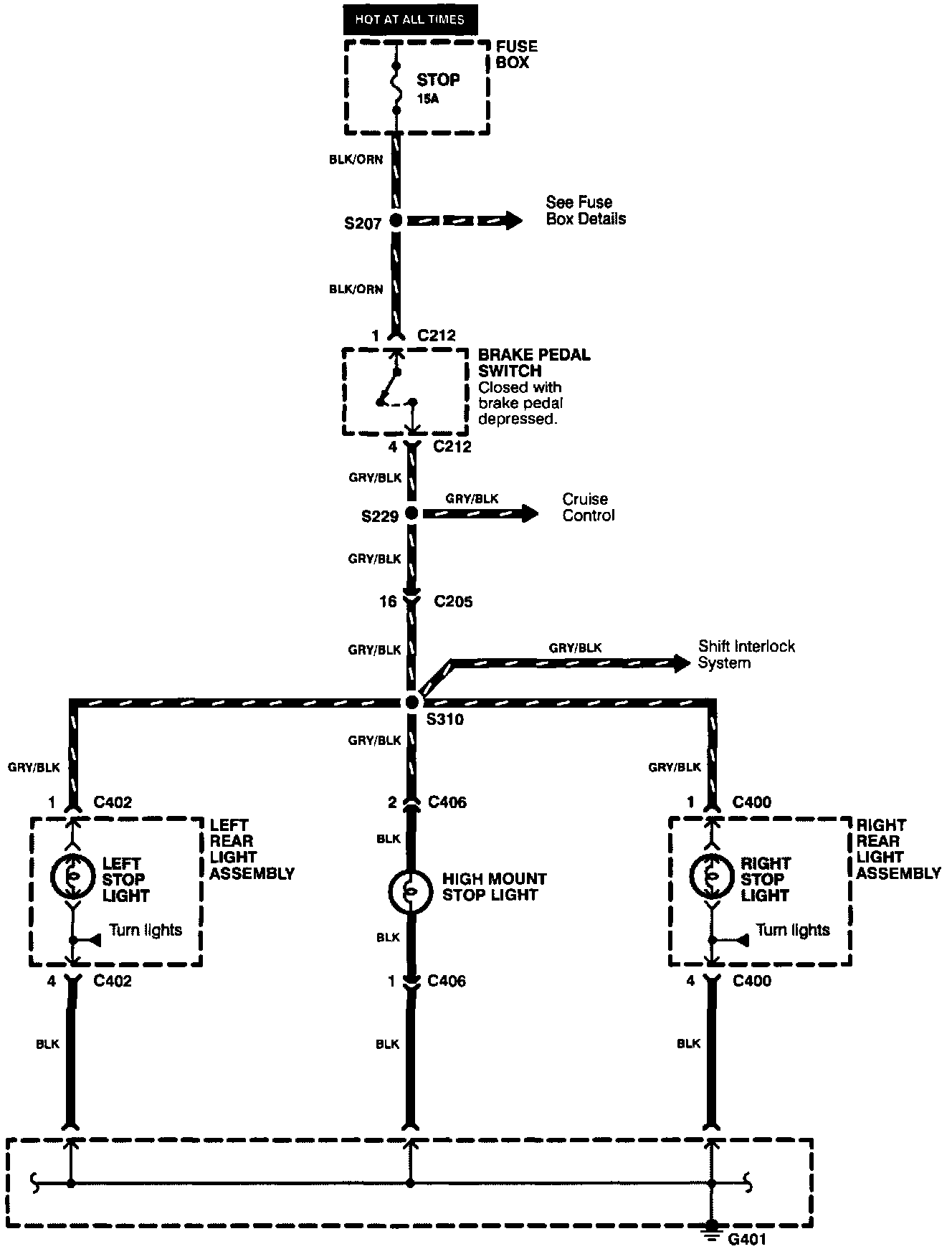

Exterior Lights: Stop, Front Side Marker, Park And Tail (Part 1 Of 2):

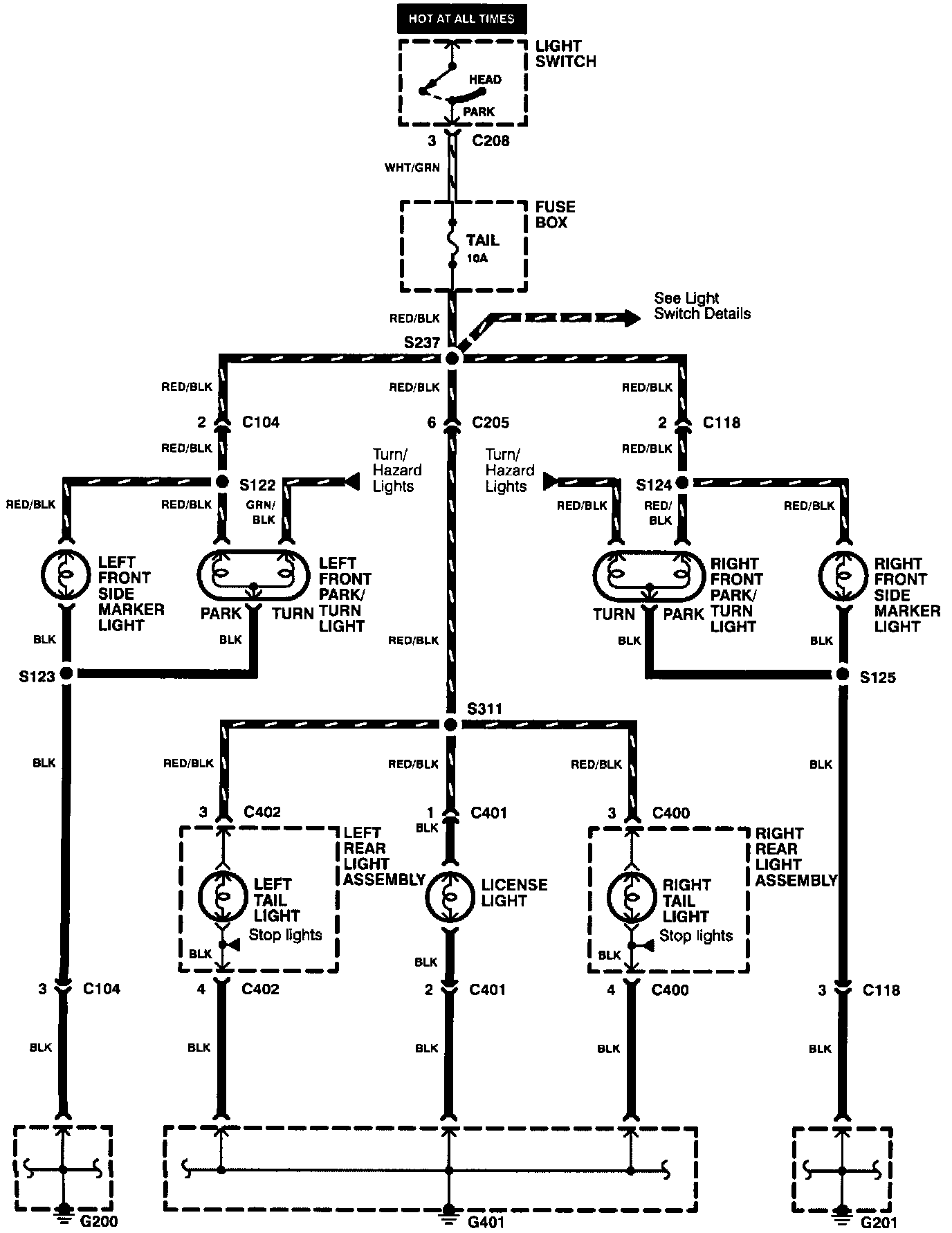

Exterior Lights: Stop, Front Side Marker, Park And Tail (Part 2 Of 2):
