Ignition Coil Wire: Testing and Inspection

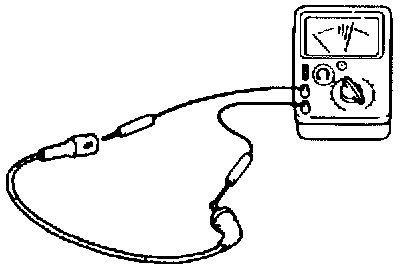

Measuring Coil Wire Resistence:





Measure resistance of the coil wire.

Specification: 16 k Ohms per 1 meter (3.3 ft).
