Component Descriptions

Description:

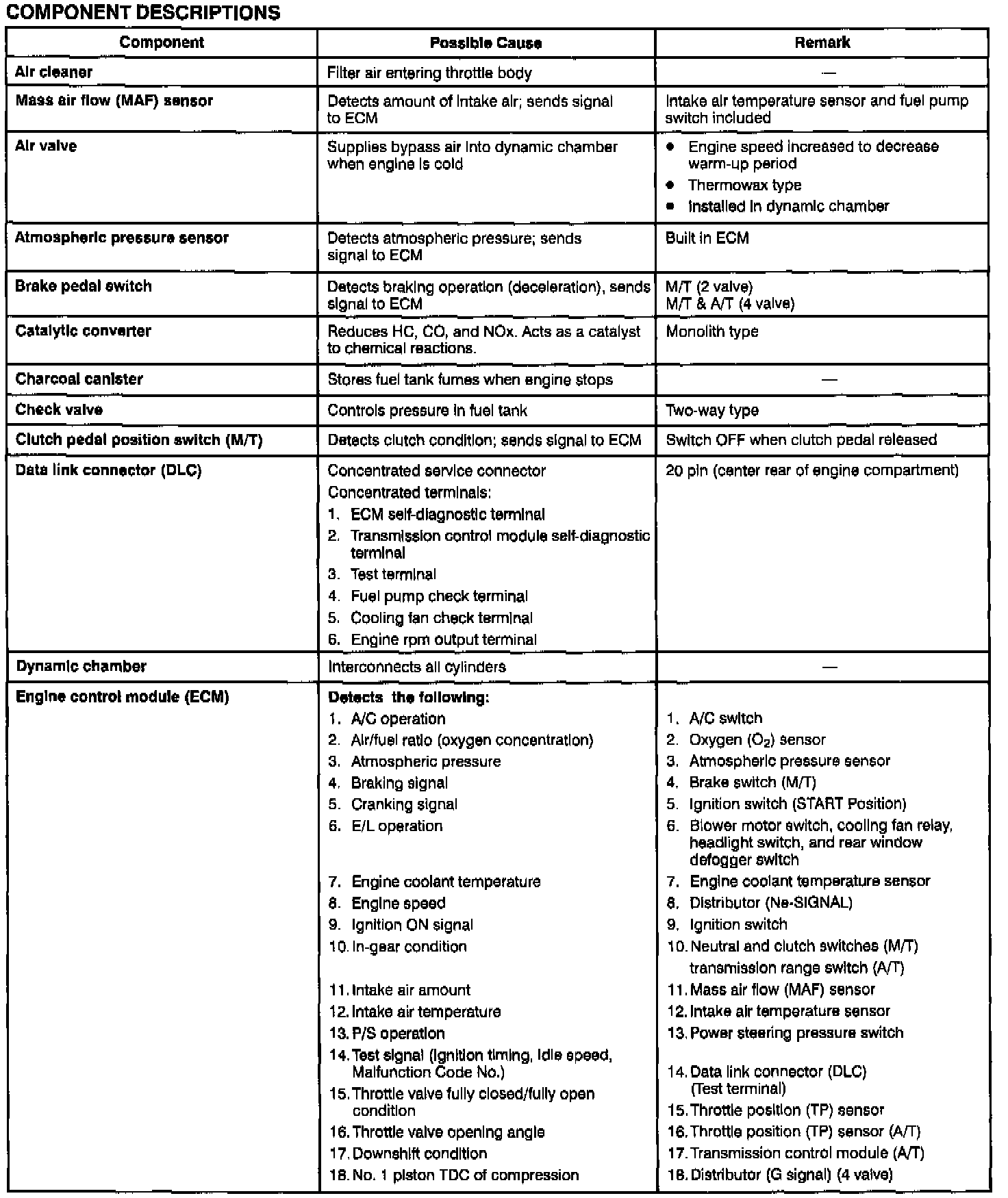

AIR CLEANER - ENGINE CONTROL MODULE

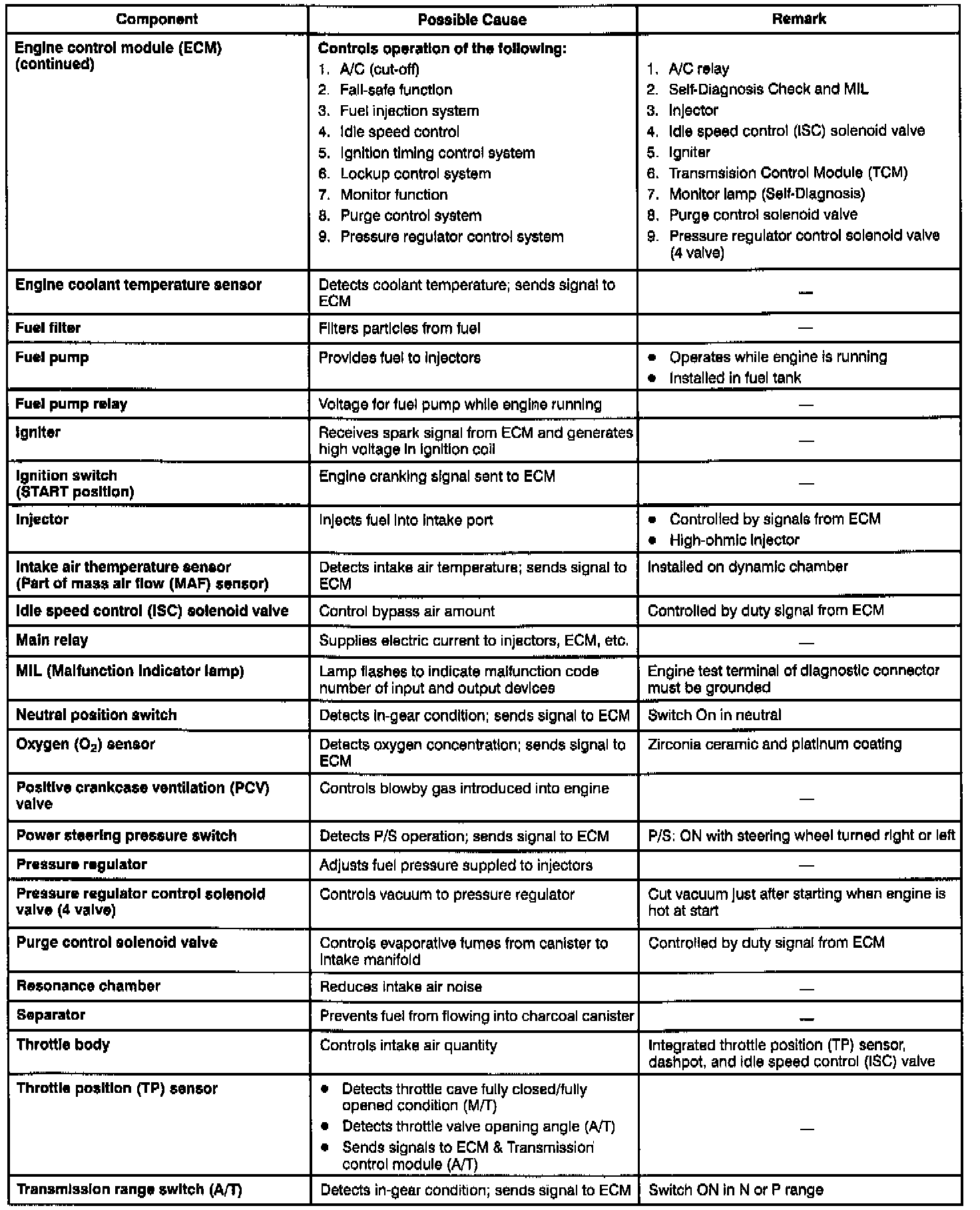

ENGINE CONTROL MODULE (CONT) - Trans. Range Switch
