Home >> Kia >> 1994 >> Sephia Sedan L4-1.6L SOHC 16V >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Locations >> Power Distribution

Power Distribution

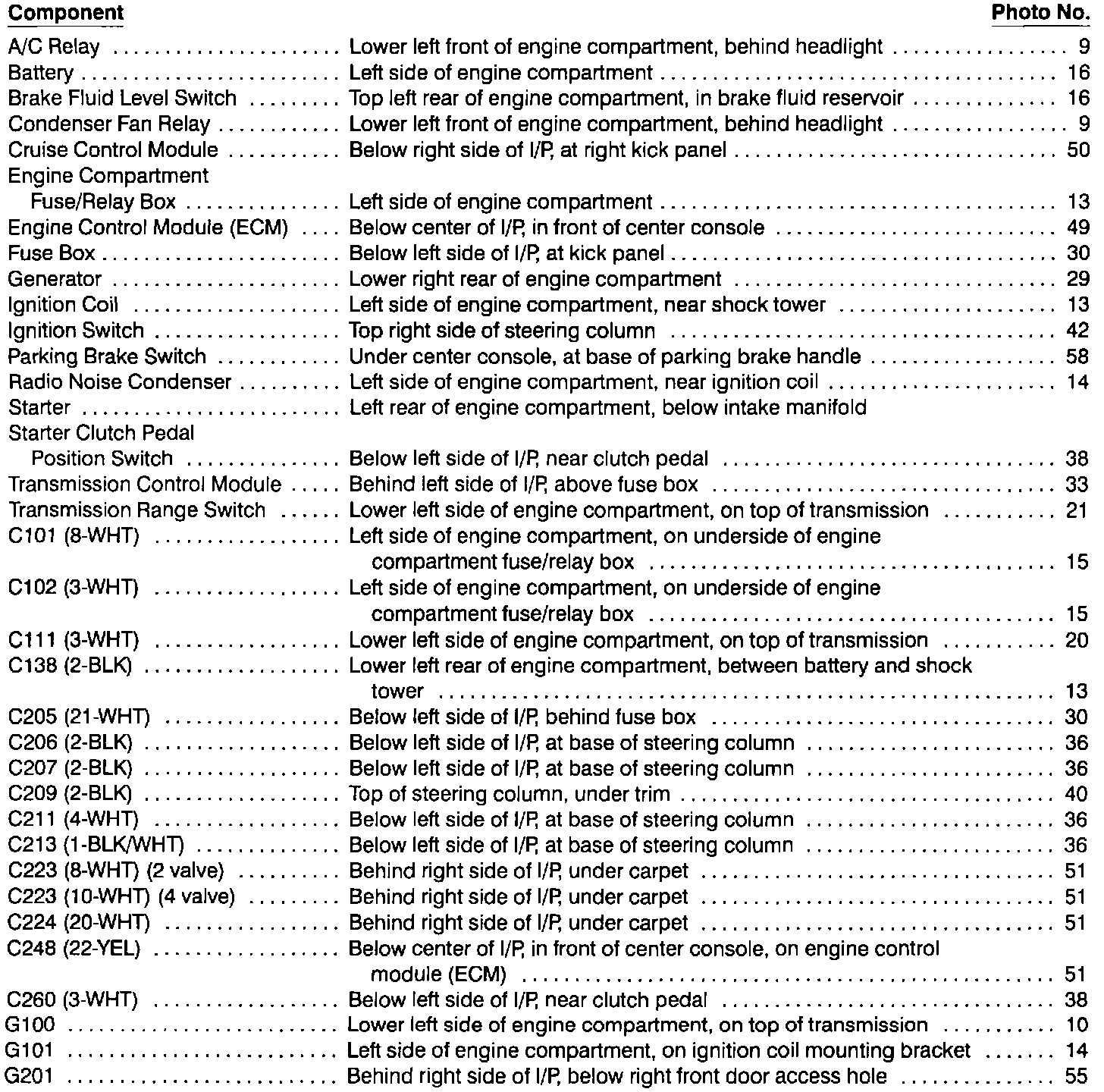

Power Distribution-Component Location Index:
