Rocker Arm Assembly

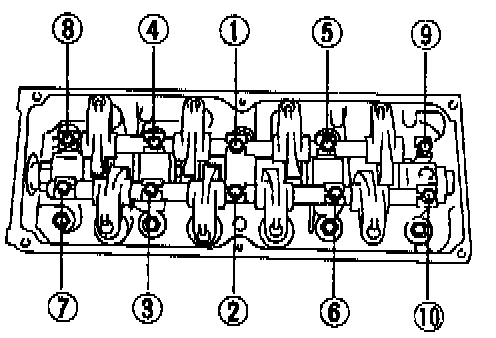

Bolts must be tightened gradually and in the order shown in the figure.
Tightening torque:
16-21 ft-lb (22-28 Nm)
