Cylinder Head

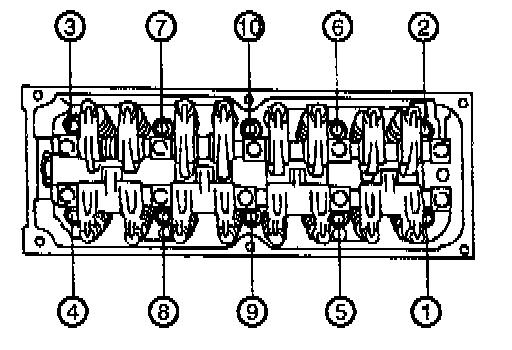

Tighten the cylinder head bolts gradually, in the order shown in the figure.

Tightening torque:
(56-60 ft-lb) 76-81 N.m
