Wiper Switch
>>
Testing and Inspection
>>
Wiper Washer Switch
Wiper Washer Switch

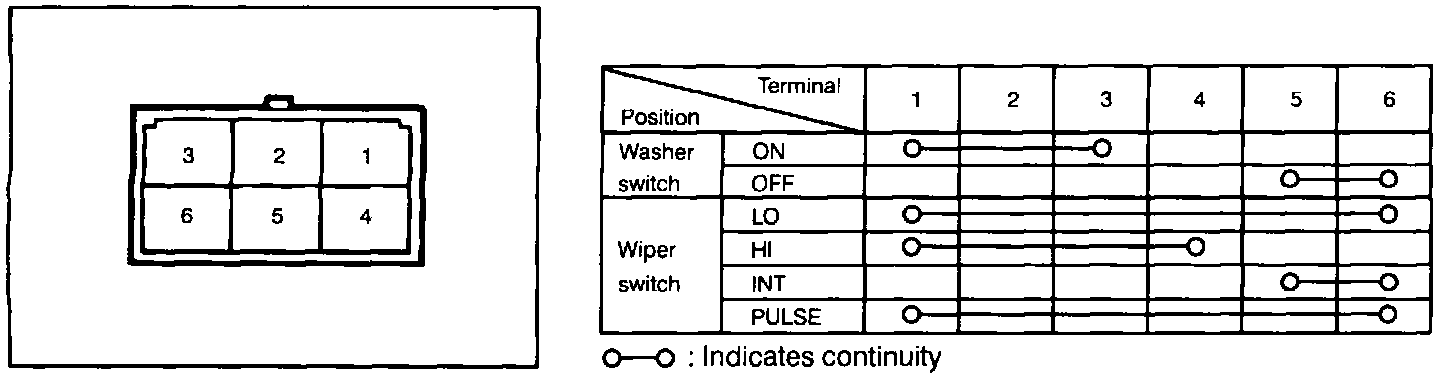

Switch Testing:
Check for continuity between terminals as indicated.
