Home >> Kia >> 1994 >> Sephia Sedan L4-1.6L SOHC 16V >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Hazard Warning Switch >> Testing and Inspection

Hazard Warning Switch: Testing and Inspection

Exterior Lights-Circuit Testing:

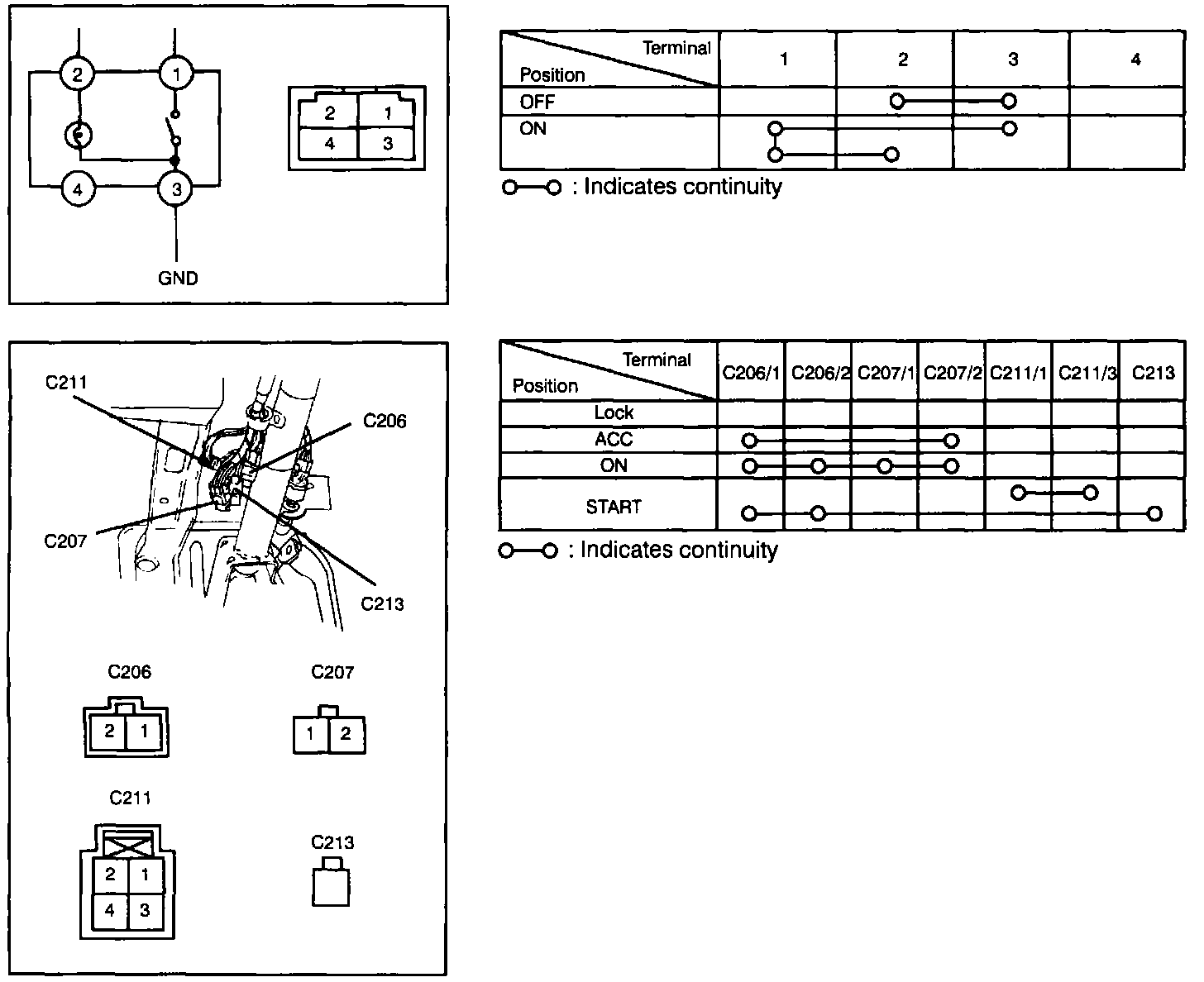

Switch Testing:
