Dimmer Switch: Testing and Inspection

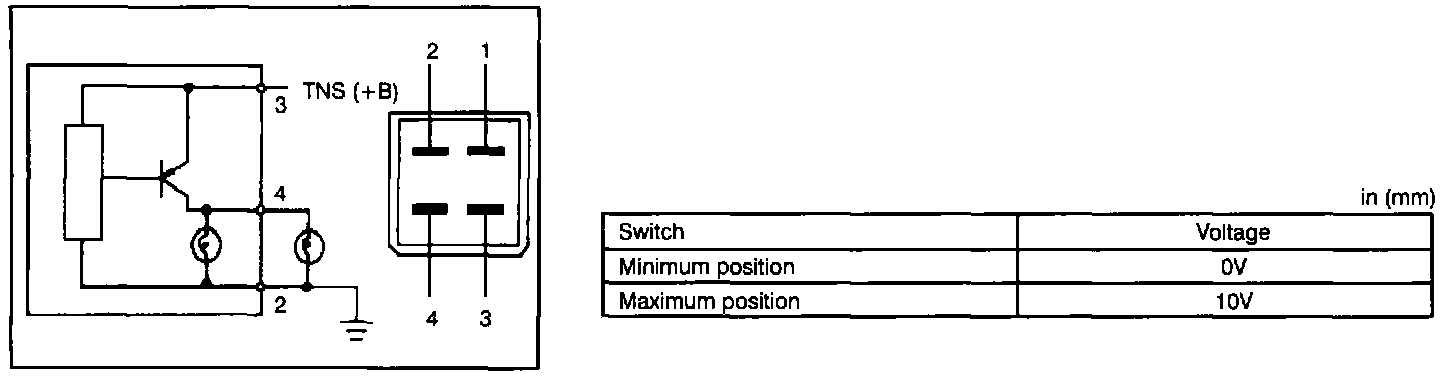

Interior Lights Dimming-Circuit Testing:

1. Remove the switch.
2. Apply 12 V to terminal 3 and ground to terminal 2.
3. Check that the voltage at terminal 4 changes linearly when turning the switch.
