Ignition Control Module: Locations

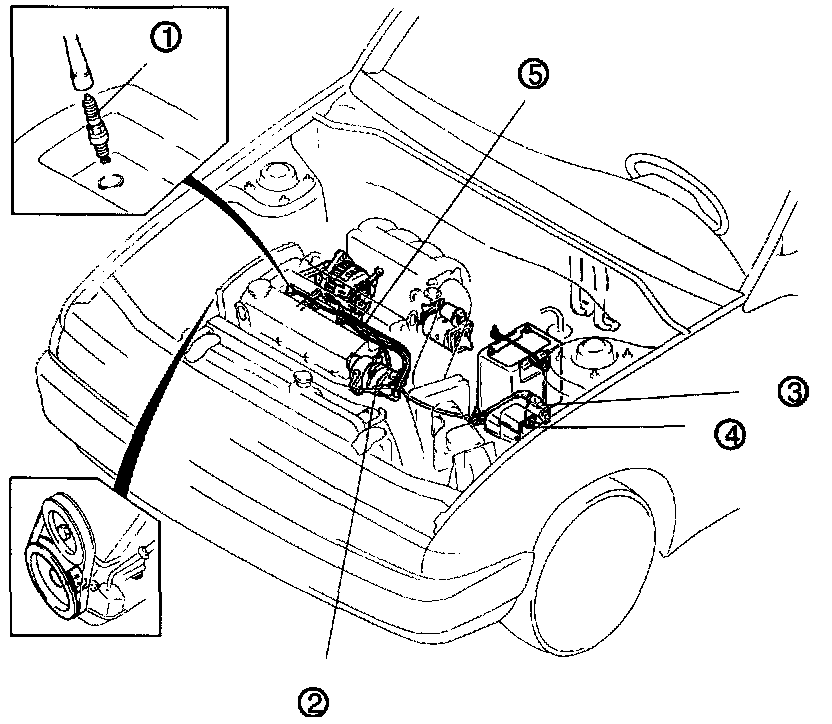

Ignition Component Location:





1. Spark plugs
2. Distributor
3. Ignition coil
4. Igniter
5. Spark plug wires
