Spark Test
INSPECTION
Checking For Spark:
1.

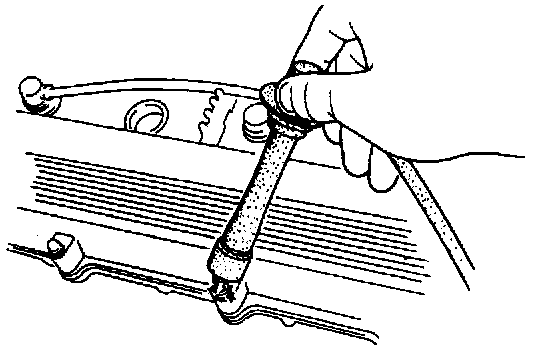

Disconnect the spark plug wire from each
spark plug
.
2.
Hold each insulator with pliers 5 - 10 mm (0.20 - 0.40 in) from ground.
3.
Crank the engine and verify that a strong blue spark is visible.
