Catalytic Converter: Service and Repair

REMOVAL / INSPECTION / INSTALLATION

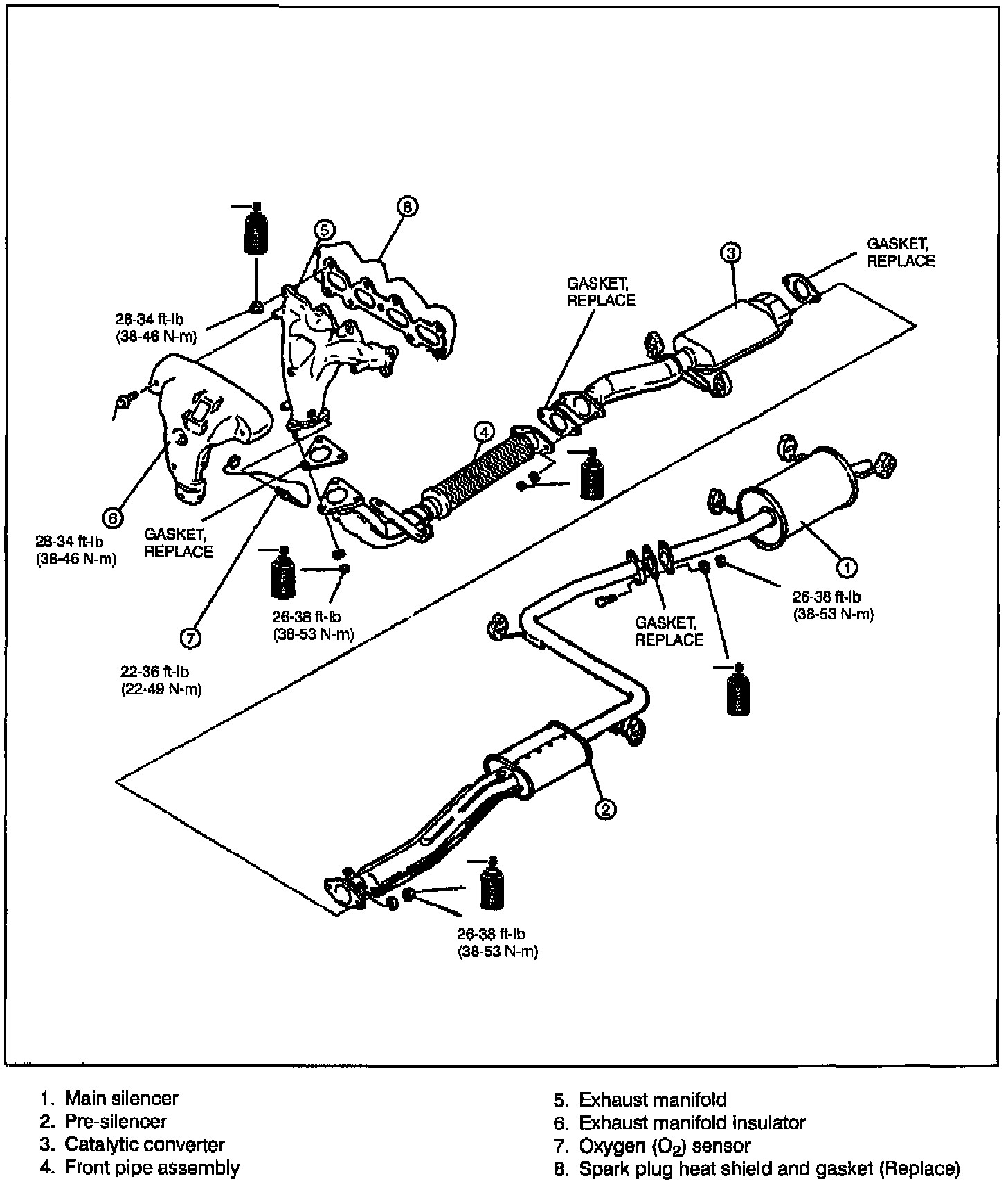

1. Remove as shown in the image.
2. Check the exhaust component parts and repair or replace if necessary.
3. Install in the reverse order of removal.
