Home >> Kia >> 1994 >> Sephia Sedan L4-1.6L SOHC 16V >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Charts >> 3 - Cranks Normally, But Won't Start - When Engine Is Cold

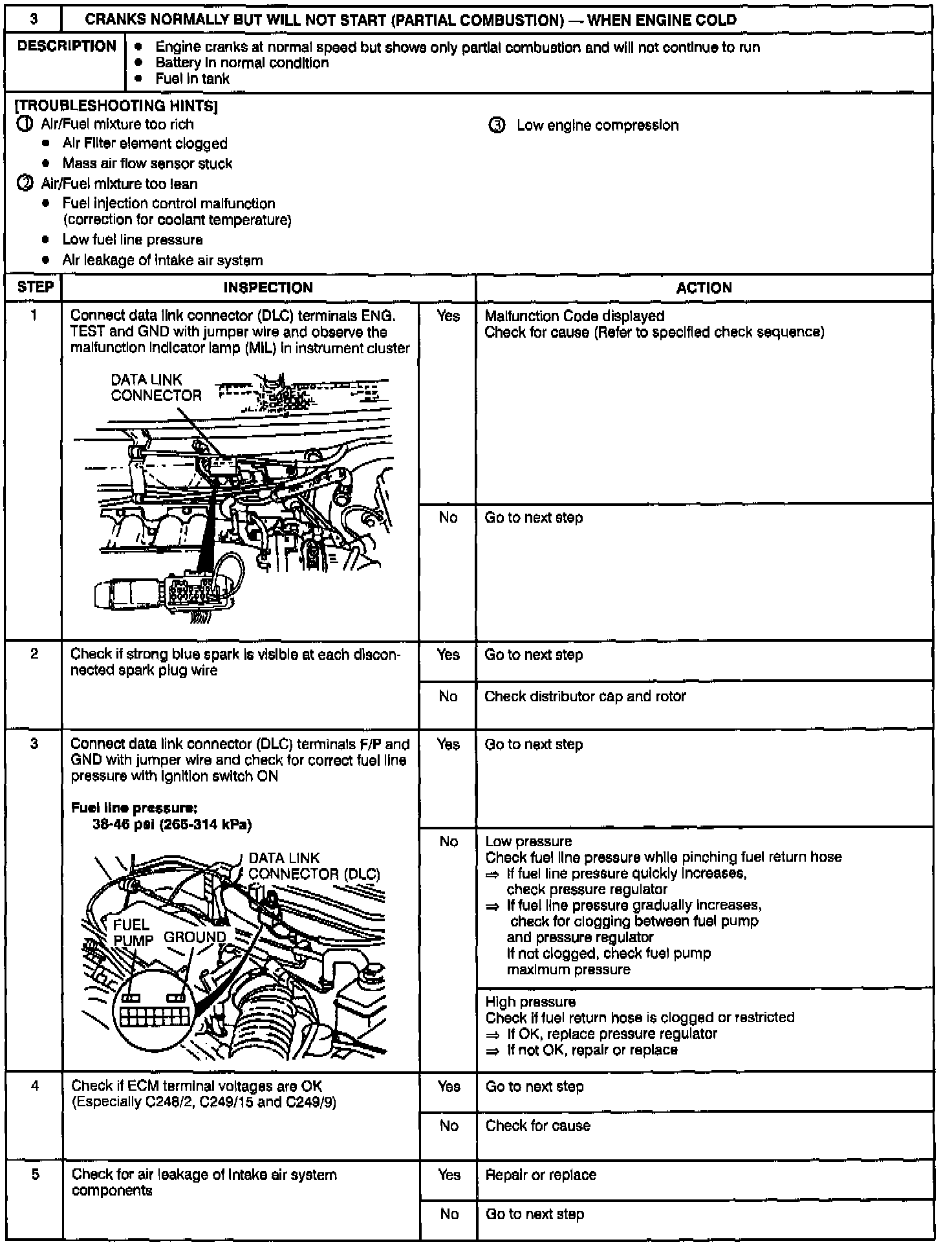

3 - Cranks Normally, But Won't Start - When Engine Is Cold

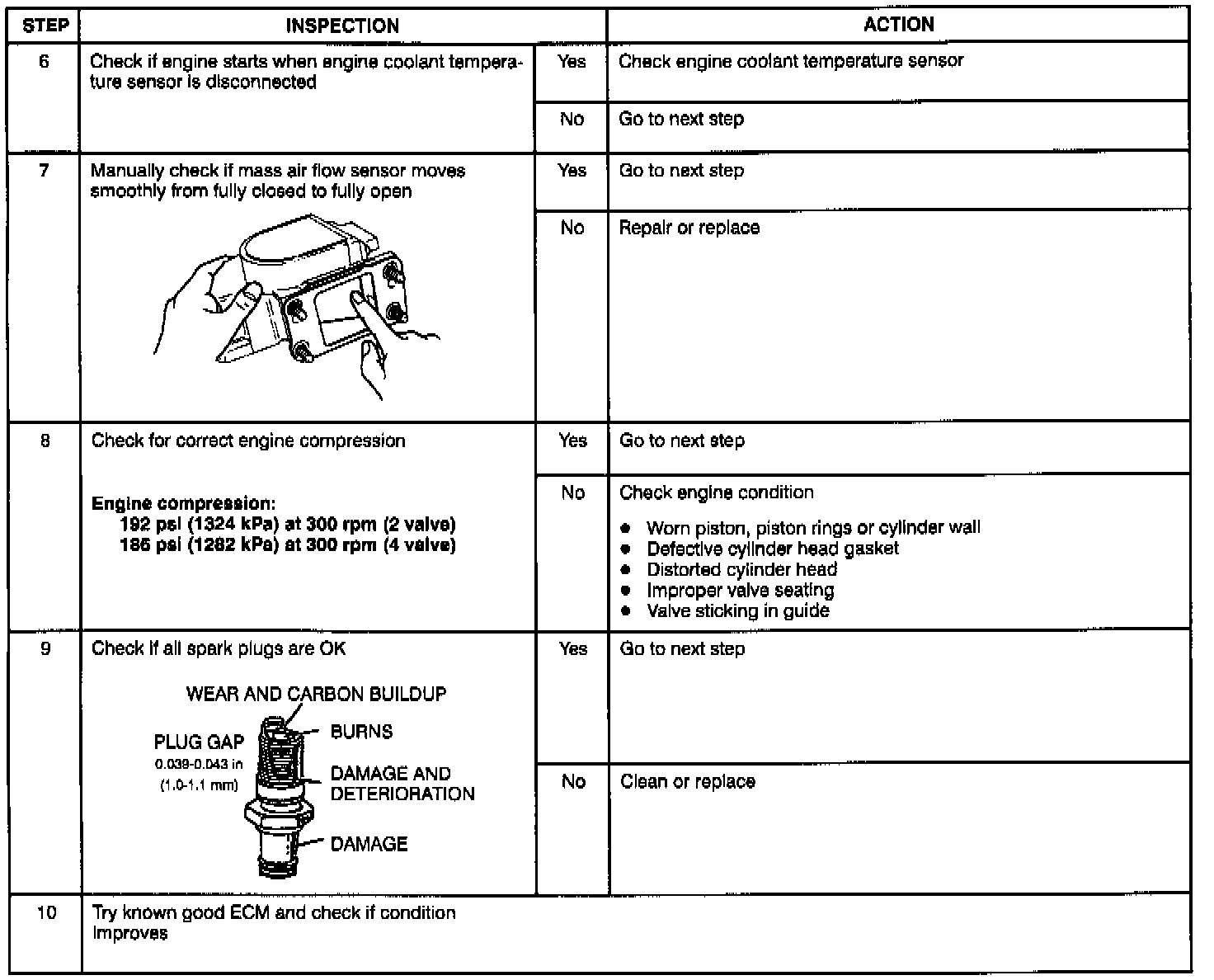

Diagnostic Chart:



Diagnostic Chart:
