Home >> Kia >> 1994 >> Sephia Sedan L4-1.6L SOHC 16V >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Charts >> 17 - Hesitates/Stumbles on Acceleration

17 - Hesitates/Stumbles on Acceleration

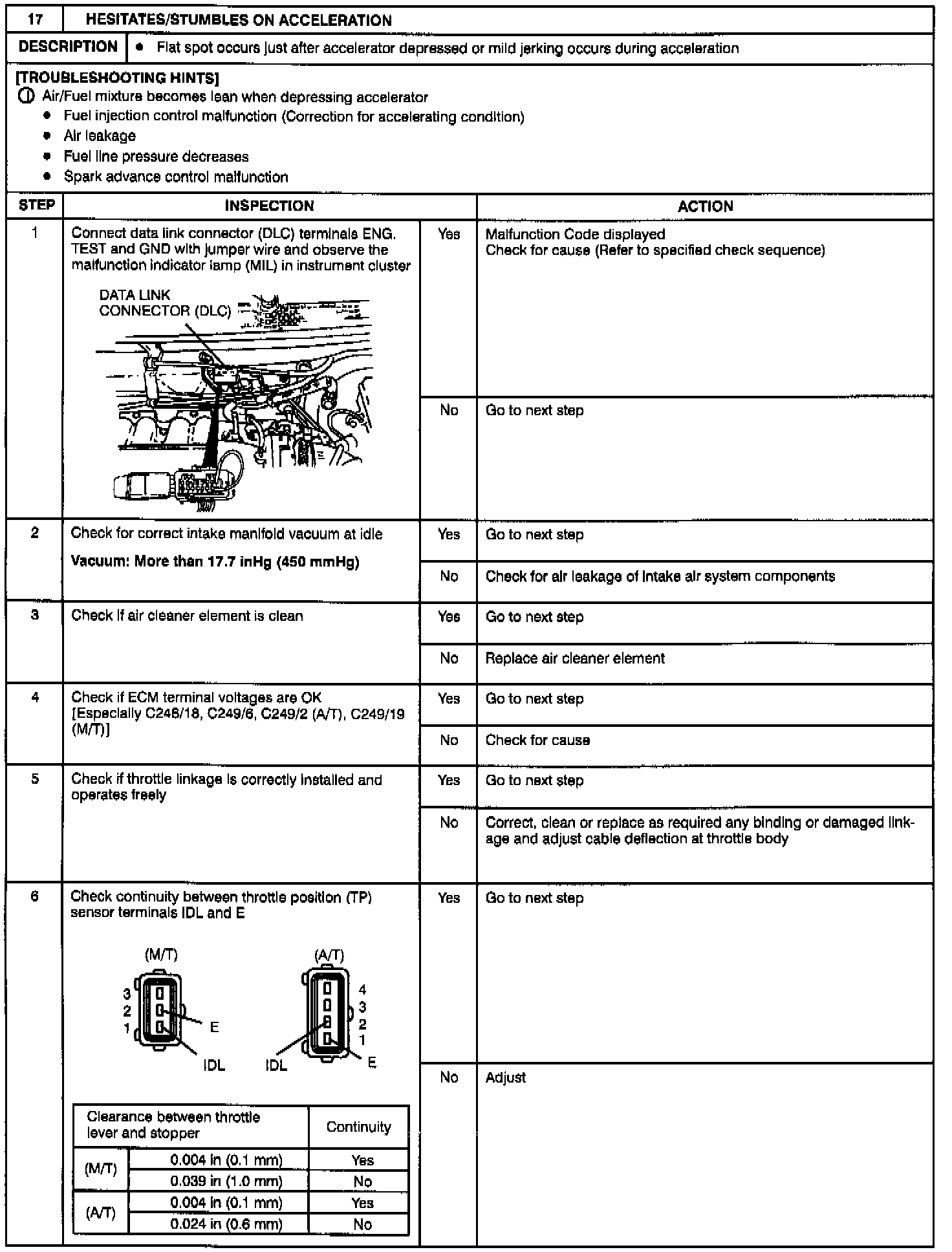

Diagnostic Chart:

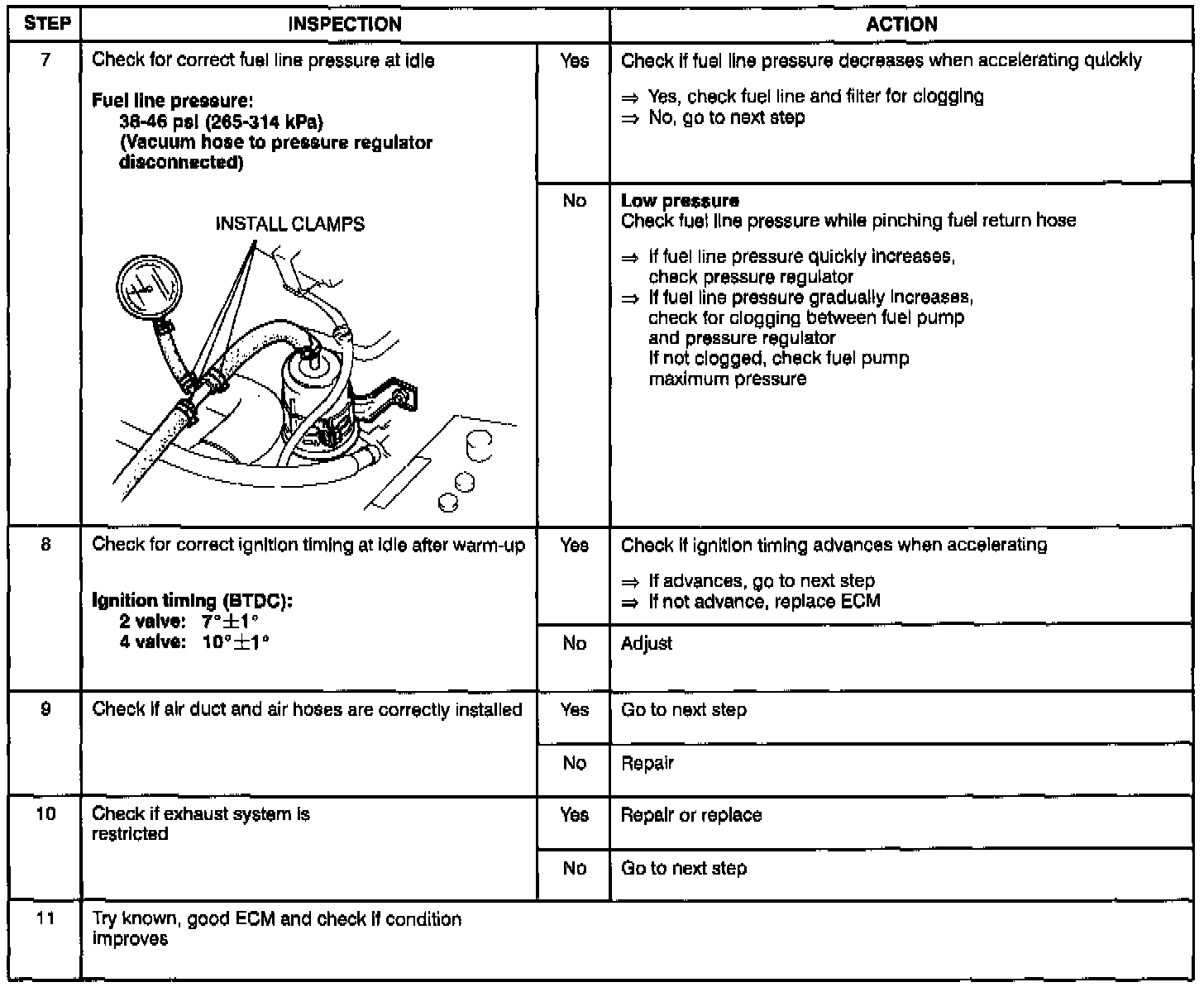

Diagnostic Chart:
