Vehicle Speed Sensor: Testing and Inspection

Vehicle Speed Sensor-Circuit Testing:

1. Remove the instrument cluster.

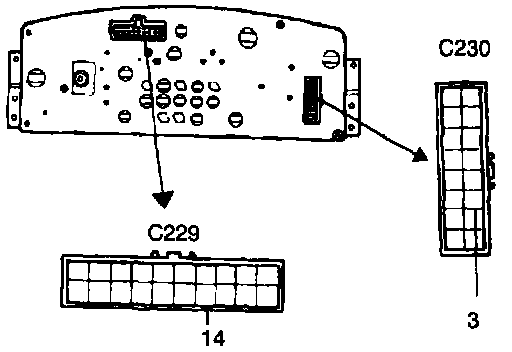

2. Check continuity between terminals C230/3 (GRN/RED) and C229/14 (BLK) while rotating the speedometer cable shaft.
3. If there are not four pulses per shaft rotation, replace the vehicle speed sensor.
