Component Locations

Component Location Index:

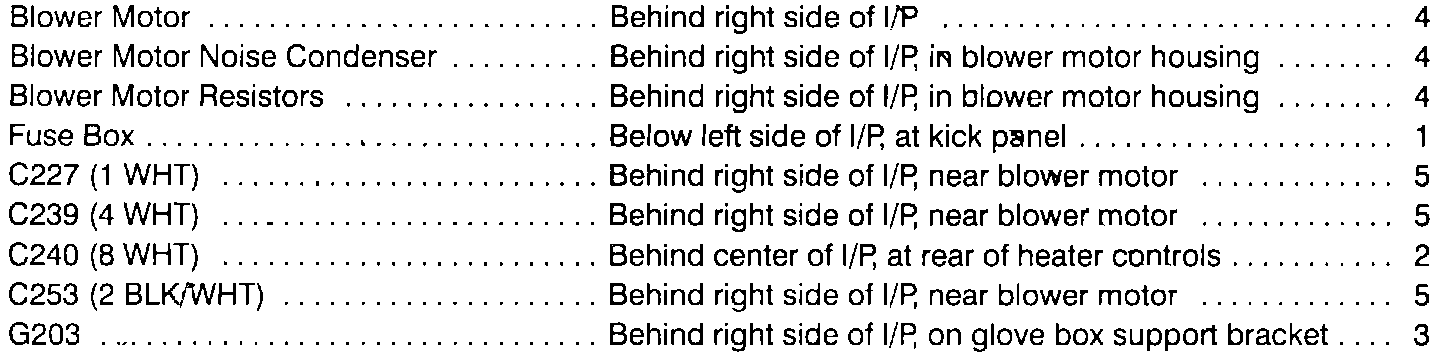

A component location index follows each schematic. Except for the location of obvious components, like Headlights, the index lists the location of every component, connector and ground in the schematic. The number of cavities in each connector and the connector color is also listed. Wires may not be used in all connector cavities.
