Main Relay (Computer/Fuel System): Testing and Inspection

Description:

INSPECTION
1. Verify that the relay clicks when turning the ignition switch ON and OFF (located in engine compartment fuse/relay box).

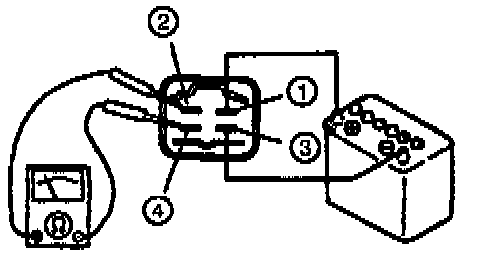

2. Apply 12V to terminal 1 and ground terminal 3 of the main relay.
3. Check continuity of the terminals as shown in the image.
4. If not as specified, replace the main relay.
