Engine Compartment

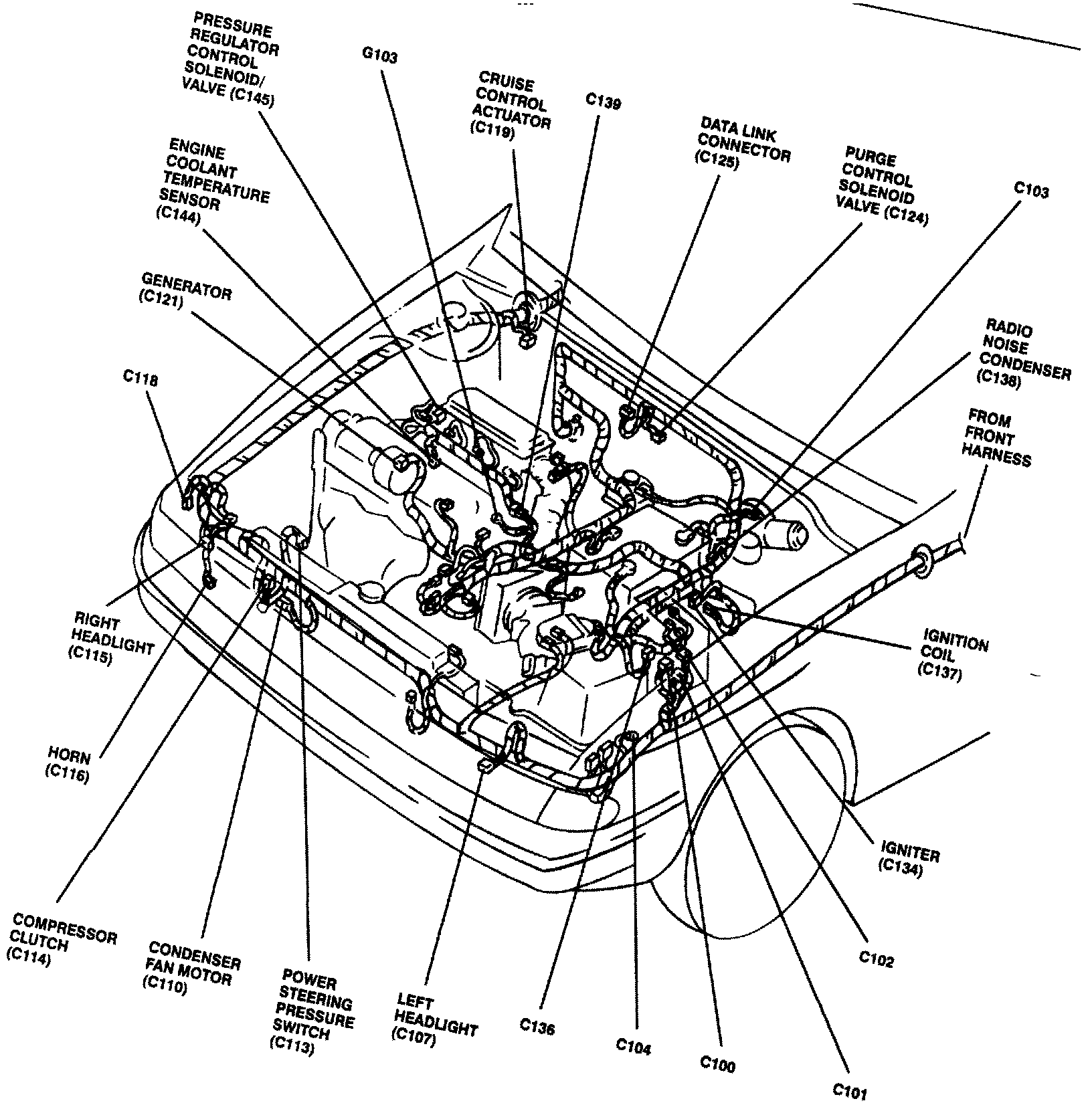

Connector Identification And Wire Harness Routing:

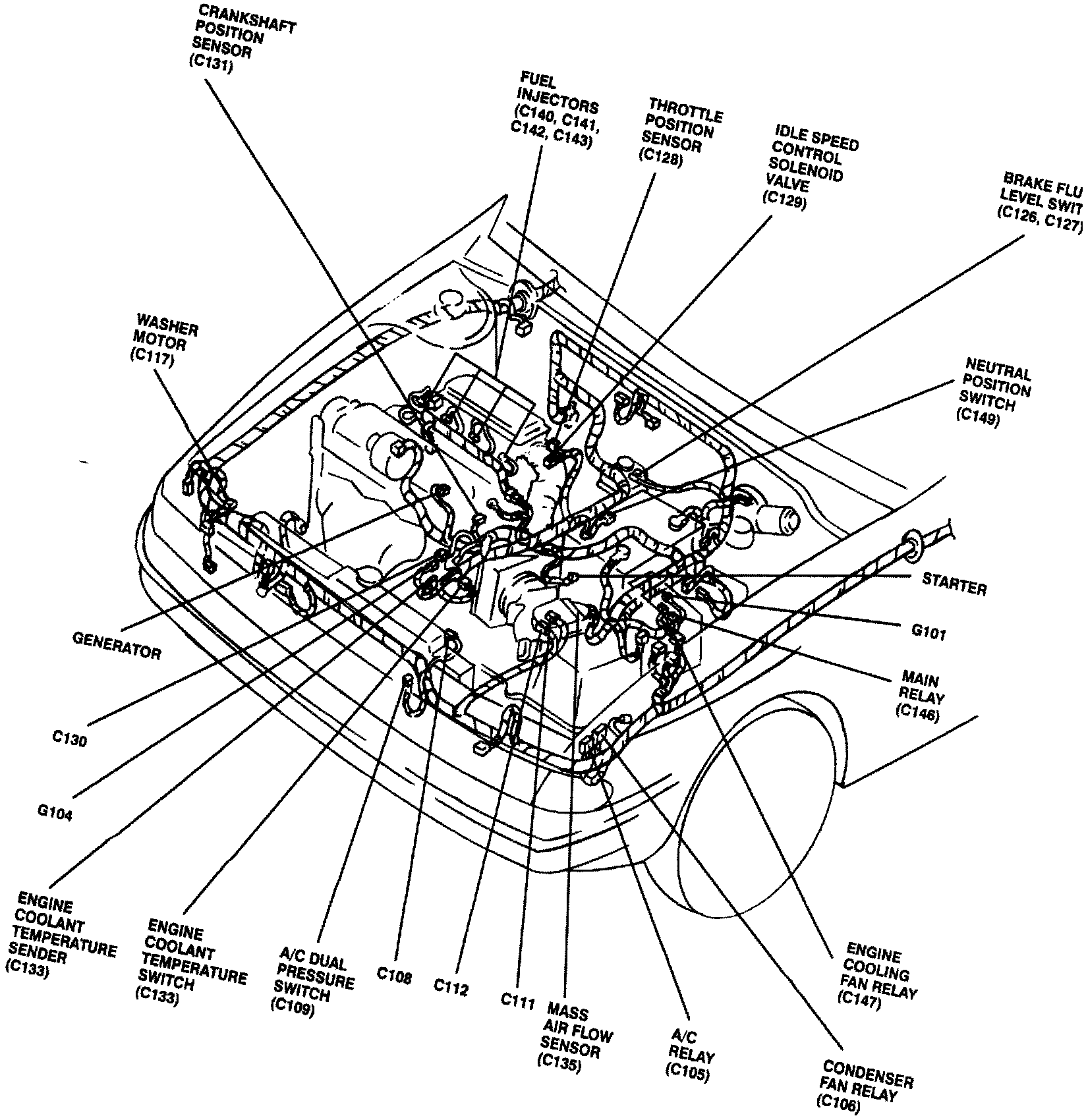

��HConnector Identification And Wire Harness Routing:
