Indicators and Gauges Cluster

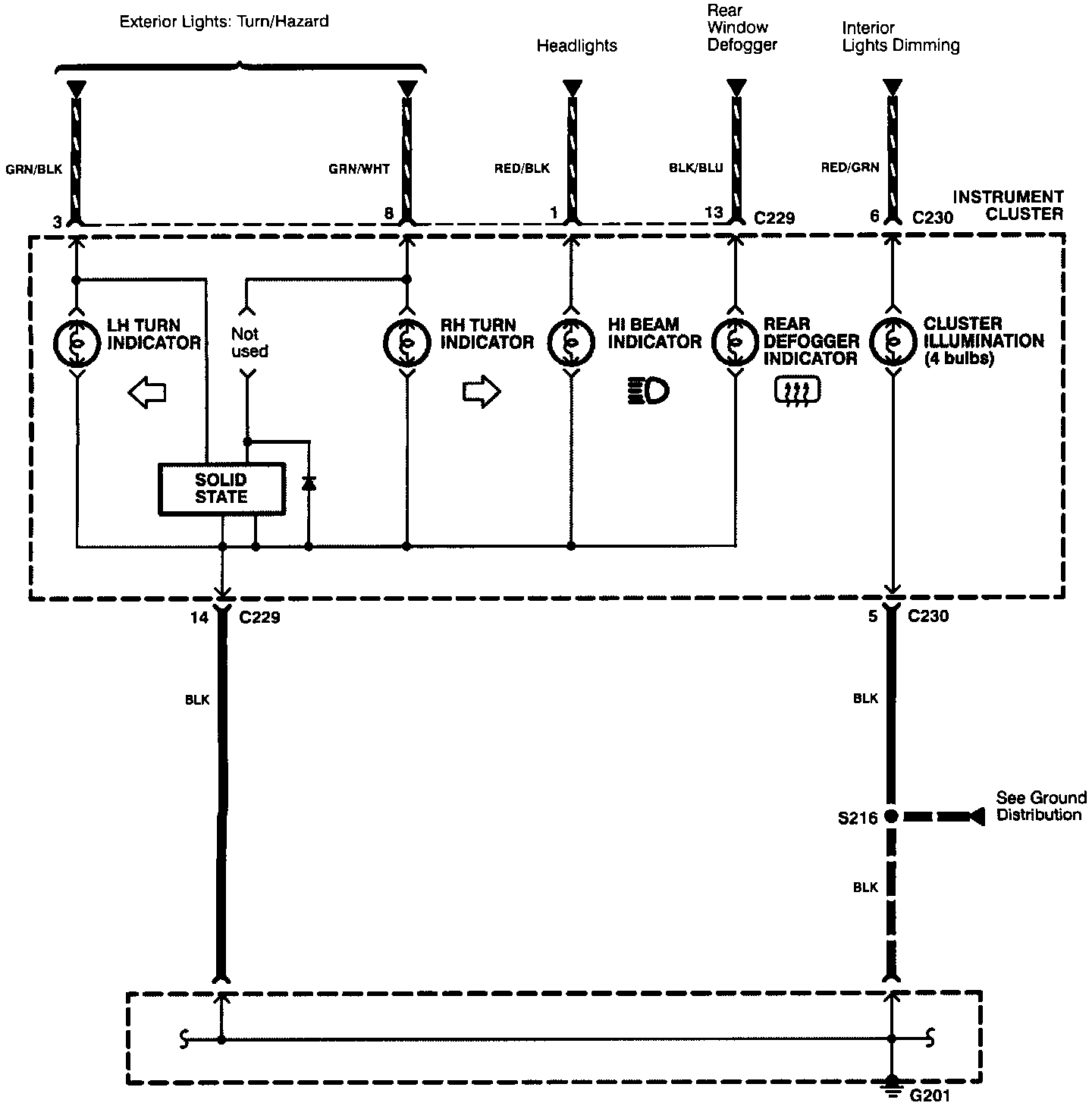

Indicators Cluster (Part 1 Of 3):

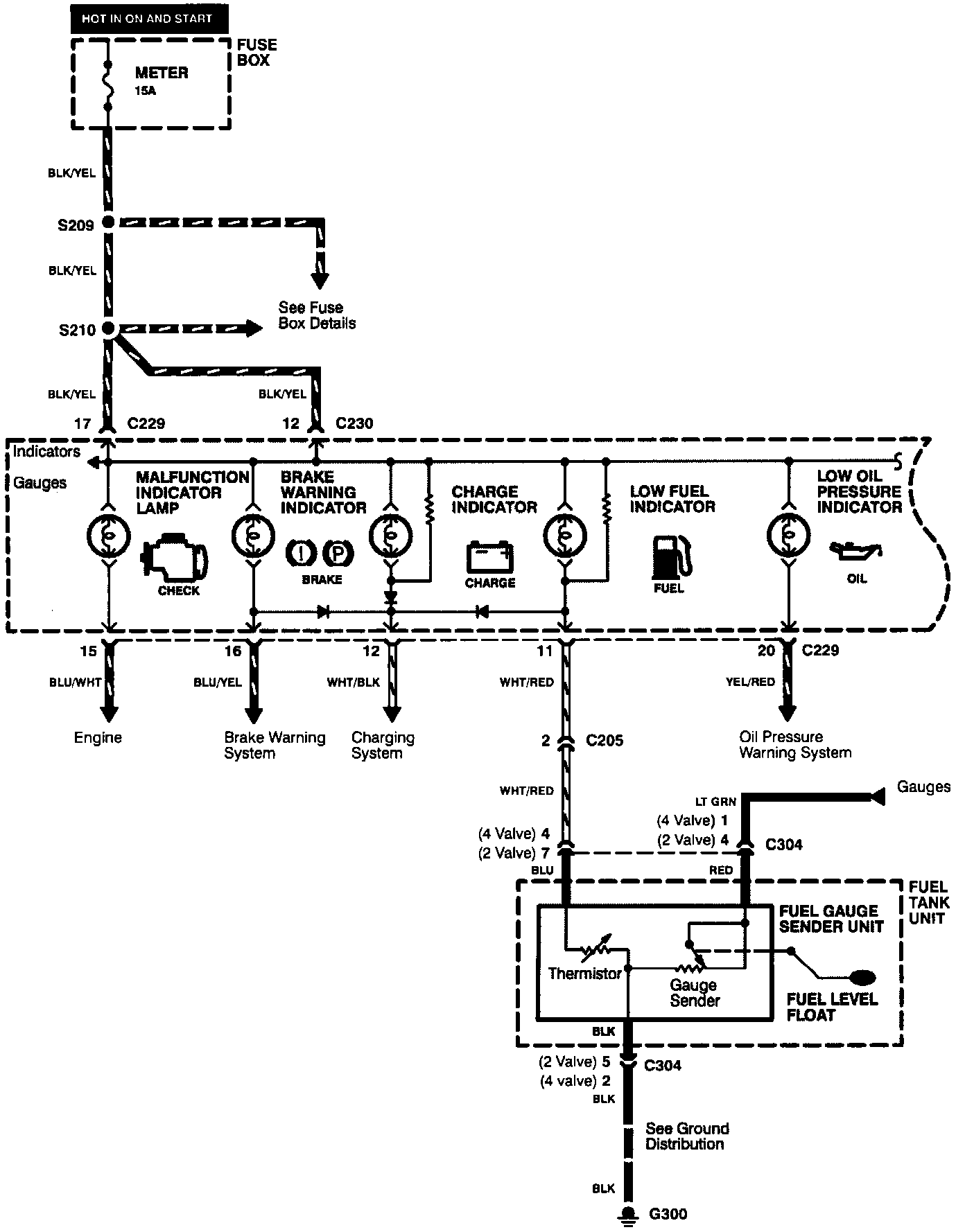

Indicators Cluster (Part 2 Of 3):

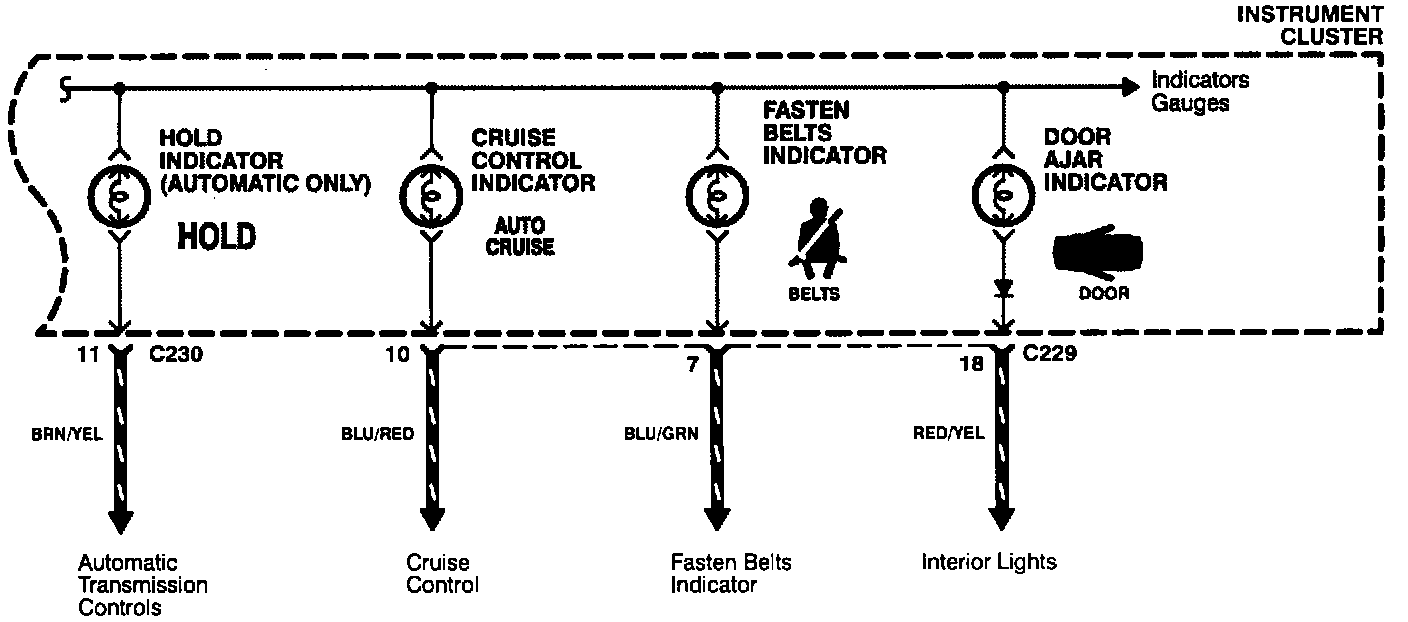

Indicators Cluster (Part 3 Of 3):
