Power Door Lock Actuator: Testing and Inspection

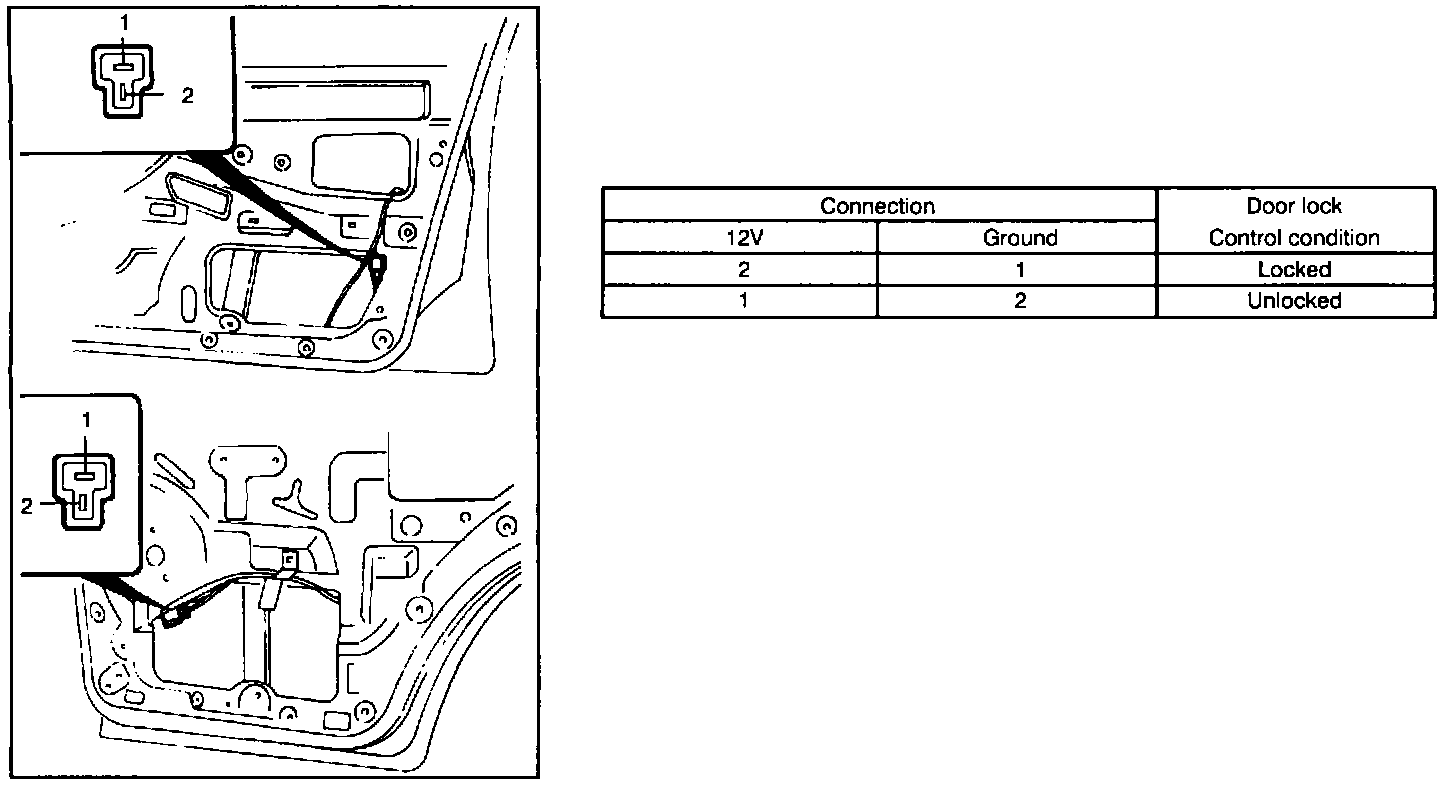

Power Door Locks-Circuit Testing:

1. Disconnect the door lock motor connector.
2. Check operation of the door lock motor when 12V is applied to the terminals.
3. If not as specified, replace the door lock motor.
