Electrical Diagrams

Audio System (AM/FM 2 Speaker System):

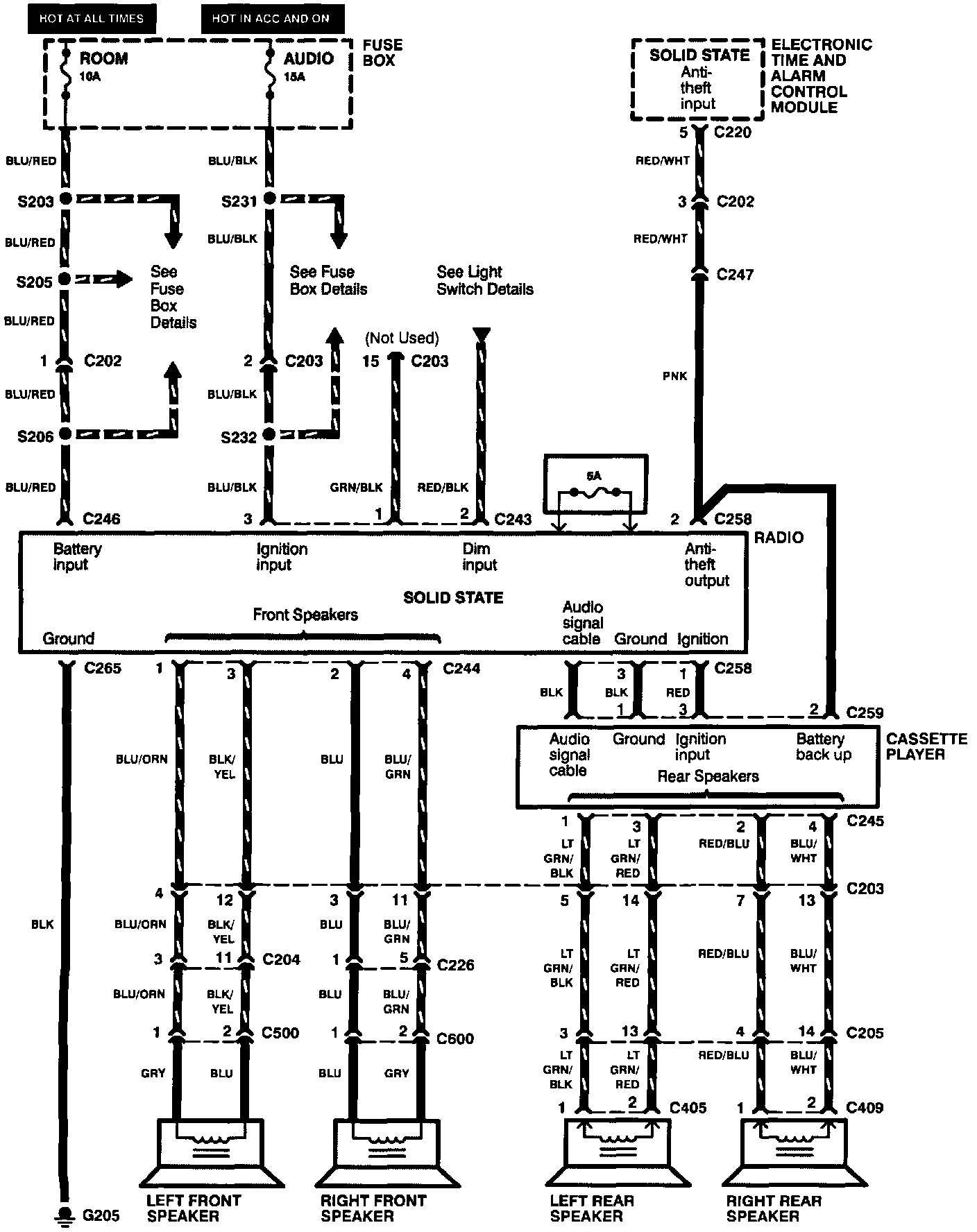

Audio System (AM/FM 4 Speaker System With Cassette):
