Alarm Module: Testing and Inspection

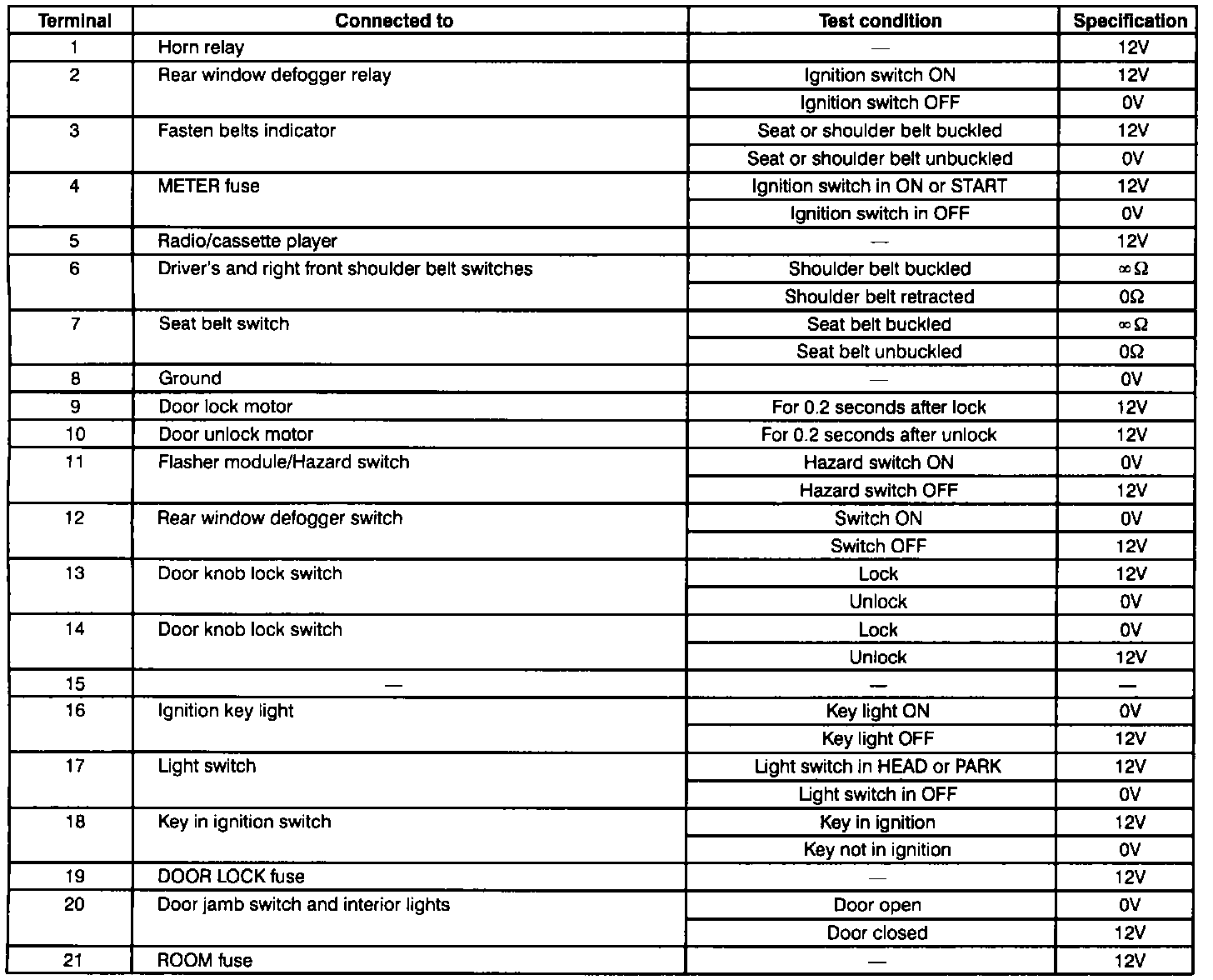

Electronic Time Alarm Control Module-Circuit Testing:

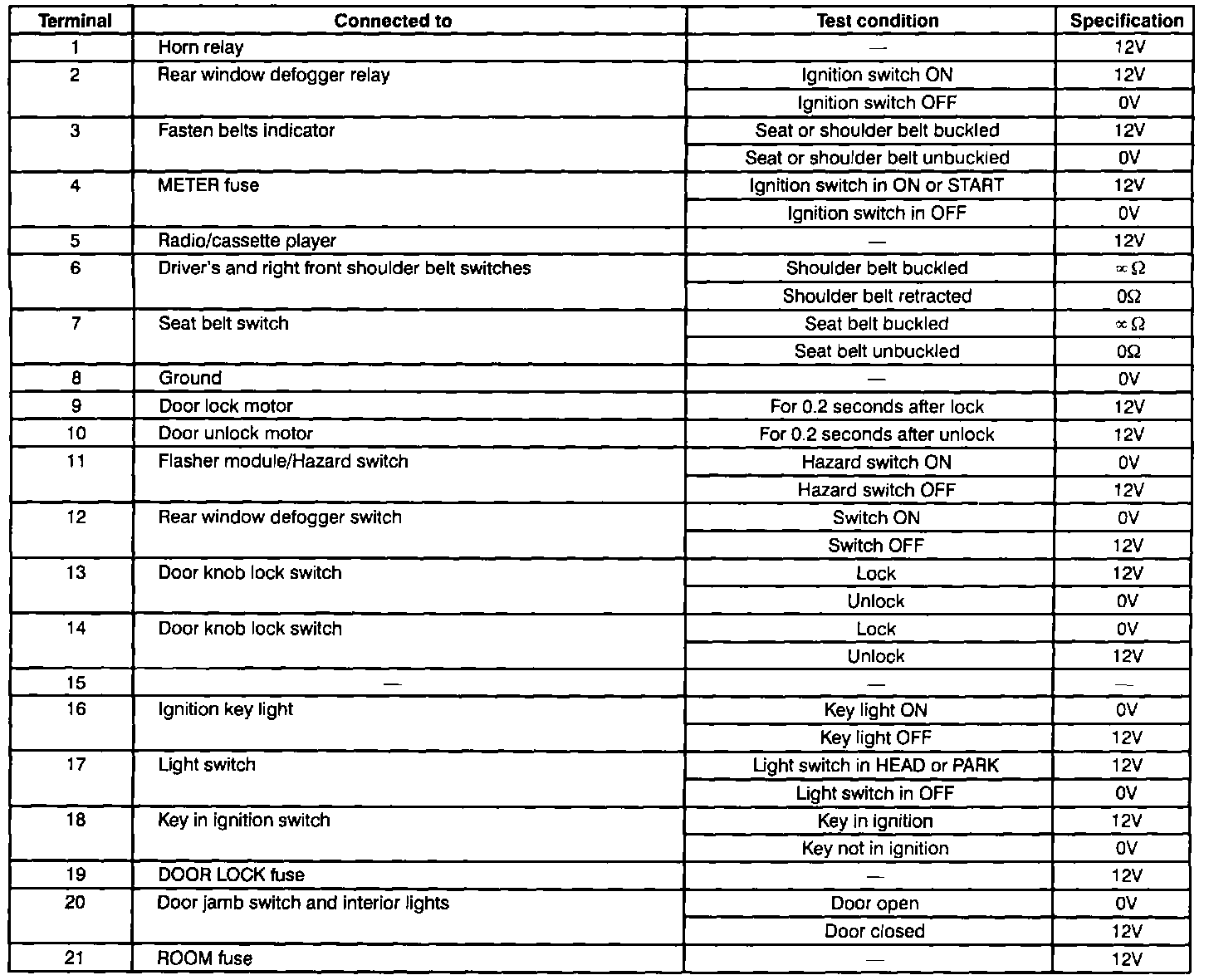

Alarm System-Circuit Testing:

Ignition Key Warning, Ignition Key Illumination, Fasten Belts Indicator And Lights ON Warning-Circuit Testing:

Alarm System-Circuit Testing:

Alarm System-Circuit Testing:

Alarm System-Circuit Testing:

Locate the electronic time and alarm control module and check for voltage or continuity with connector connected. Replace as necessary.
