Engine Control System

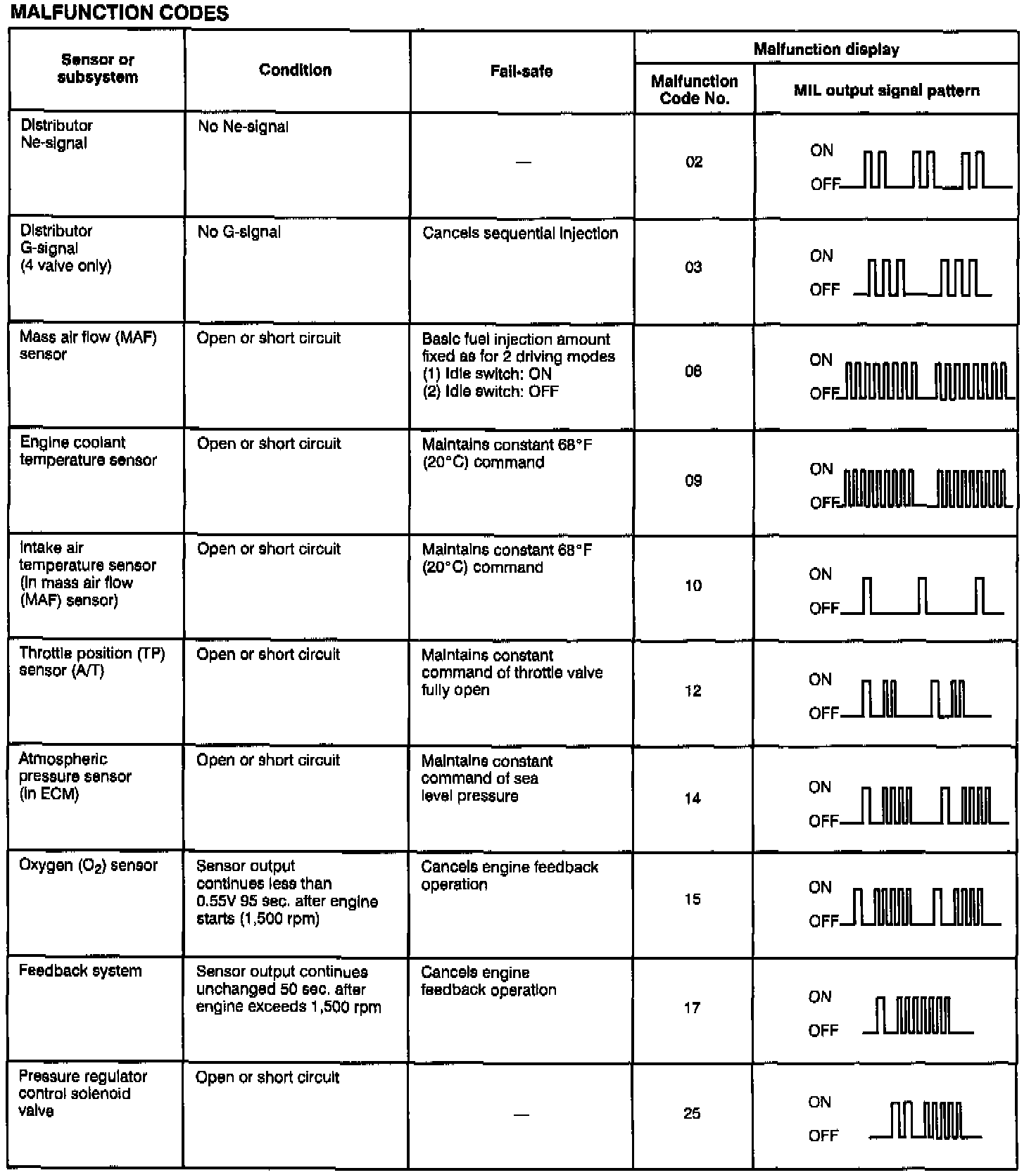

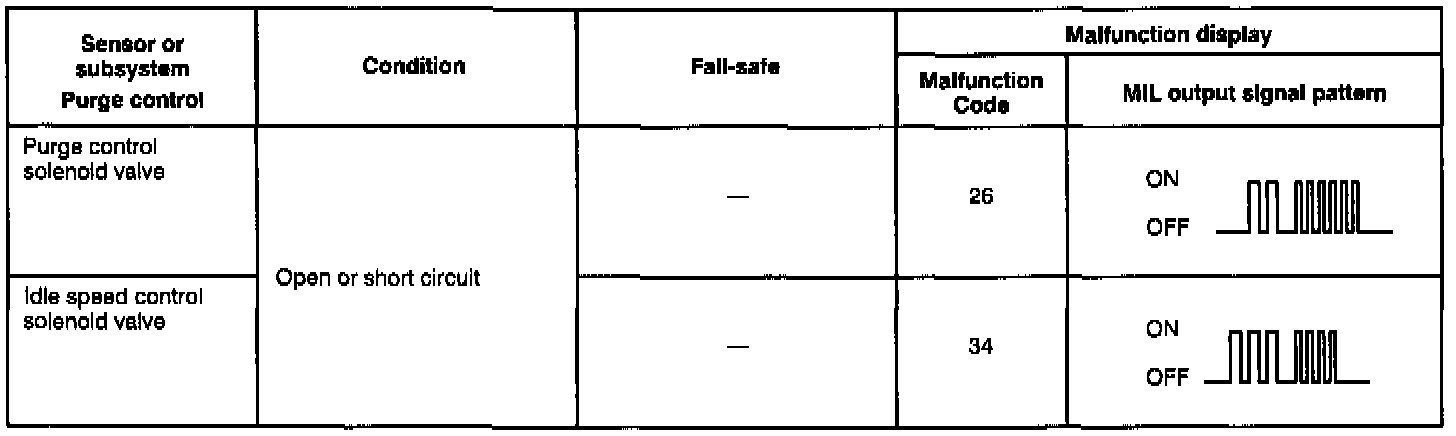

Codes:

Description:

NOTE:
^ If there is more than one failure present, the code signals will be indicated in numerical order, lowest number first.
^ After repair, turn off the ignition switch and disconnect the negative battery cable for at least twenty (20) seconds to erase the malfunction code(s) from the ECM memory.
