Repair Procedures

Replacement

1. Remove the rear wheel & tire.

Tightening torque :
88.3 - 107.9N.m(9.0 - 11.0Kgf.m, 65.1 - 79.6lb-ft)

2. Disconnect the rear shock absorber(A) from the frame by loosening the bolt.

Tightening torque :
137.3 - 156.9N.m(14.0 - 16.0Kgf.m, 101.3 - 115.7lb-ft)




3. Remove the dust cover.
4. Disconnect the rear shock absorber(A) with the rear knuckle by loosening the bolt.

Tightening torque :
98.1 - 117.7N.m(10.0 - 12.0Kgf.m, 72.3 - 86.8lb-ft)




5. Installation is the reverse of removal.

Inspection

1. Check the rubber parts for damage or deterioration.
2. Check the shock absorber for abnormal resistance or unusual sounds.

Disposal

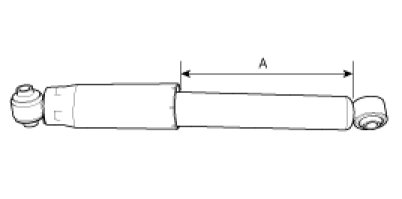

1. Fully extend the shock absorber rod.
2. Drill a hole to remove gas from the cylinder(A).





CAUTION:
The gas coming out is harmless, but be careful of chips that may fly up when drilling. Be sure to use face shield and safety goggles.
