Evaporator Temperature Sensor / Switch: Service and Repair

Inspection

1. Ignition "OFF".
2. Disconnect evaporator temperature sensor.

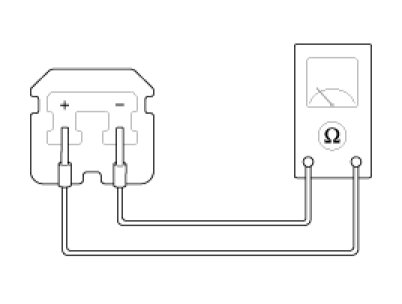

3. Using the multi-tester, Measure resistance between terminal "1" and "2" of evaporator temperature sensor.




Specification






Replacement

1. Remove the crash pad. .
2. Remove the cowl cross bar. .
3. Disconnect evaporator sensor connector.
4. Remove the heater unit cover(A).




5. Remove the evaporator sensor(A).




6. Installation is the reverse order of removal.
