Home >> Kia Truck >> 2013 >> Sorento 2WD L4-2.4L VIN 1 (MPI) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations

Emission Control Systems: Locations

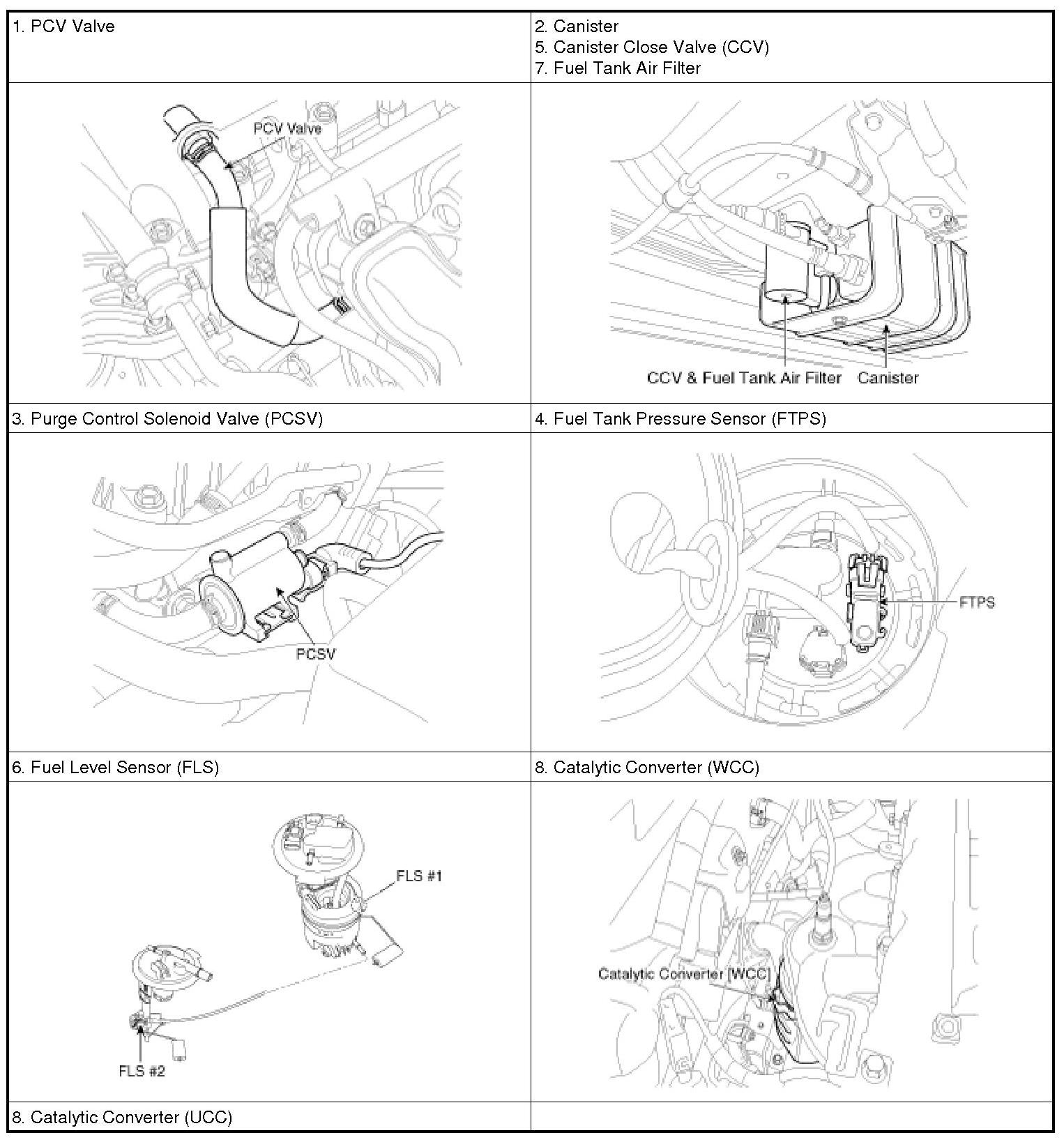

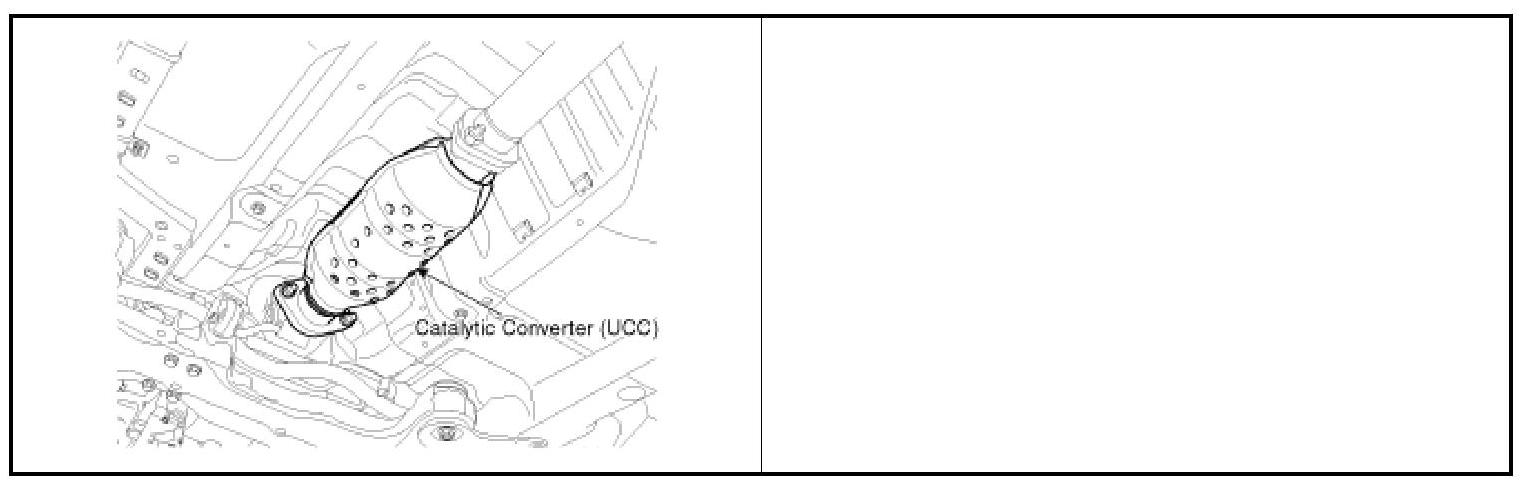

Components Location

[2.4 MPI]


















[2.4 GDI]
