Repair Procedures

Inspection

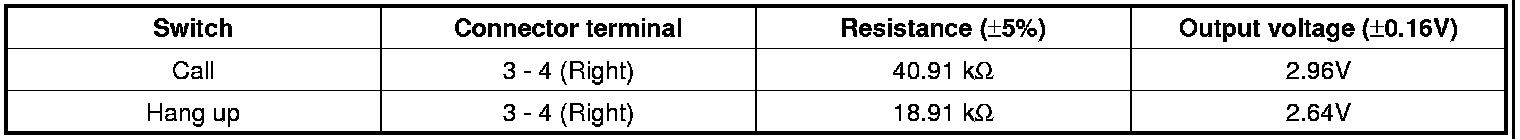

1. Check the hands-free remote control switch for resistance between No.3 and No.4 terminals in each switch position.

[Call + Hang Up]





[Voice]




[Call + Hang Up]





[Voice]






Removal

1. Remove the driver airbag module.

2. Remove the steering wheel.

3. Remove the steering wheel rear cover (A) after loosening the screws.




4. Remove the hands-free remote switch (A) after loosening the screws.






Installation

1. Install the hands-free remote switch to the steering wheel bezel.
2. Install the steering wheel and bezel.
3. Reconnect the hands-free remote control switch connector and airbag connectors.

NOTE:
Make sure that the switch connector is plugged in properly.

4. Install the driver airbag module.
