Home >> Kia Truck >> 2012 >> Sorento 2WD L4-2.4L VIN 1 (MPI) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Axle Shaft Assembly

Axle Shaft Assembly

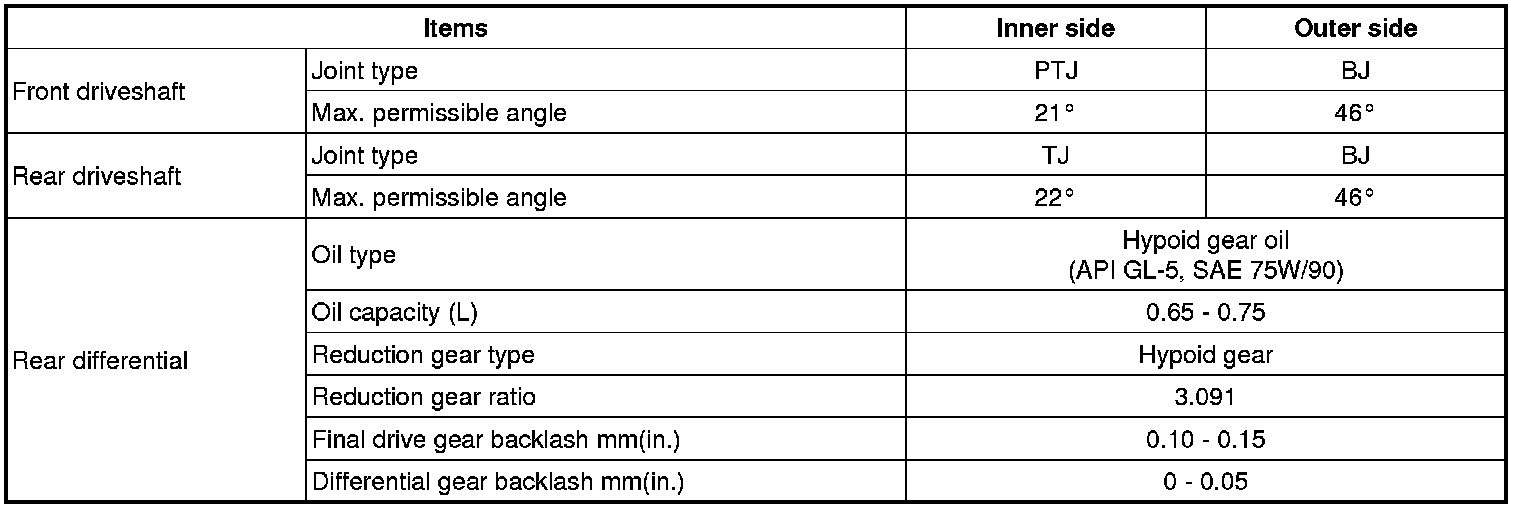

Specification

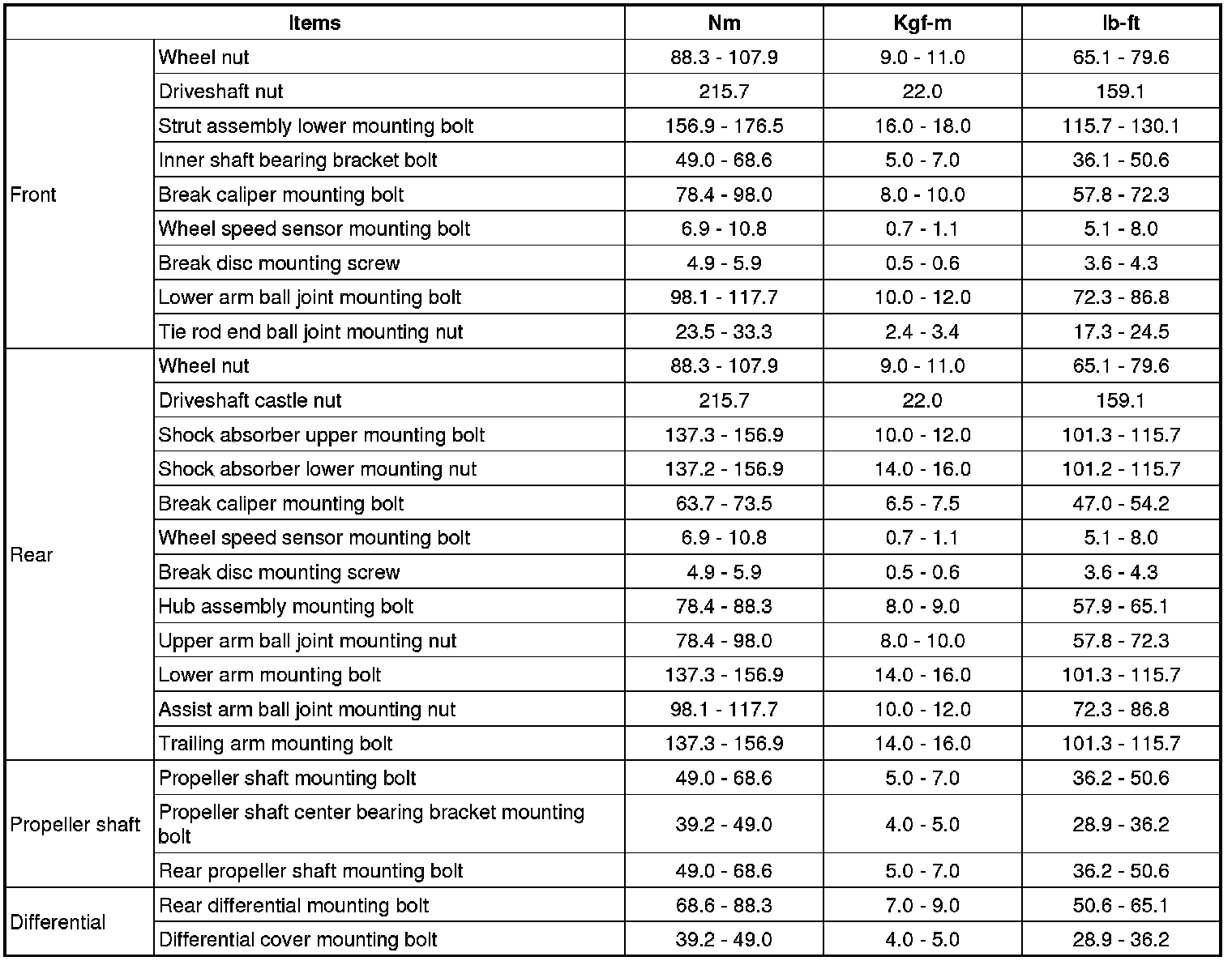

Tightening torque






CAUTION:
Replace self-locking nuts with new ones after removal.

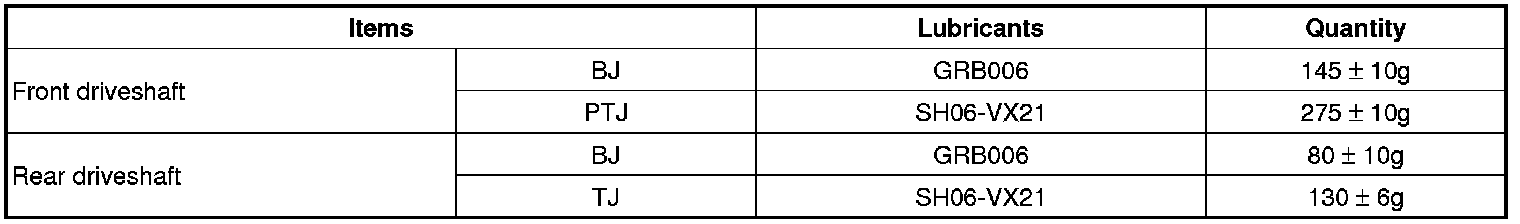

Lubricants
