Speaker: Service and Repair

Inspection

1. Troubleshooting for Speaker
(1) Basic inspection of speaker
Inspect the sound from speaker after verifying that the speaker mounting screws is removed and the wiring connector is connected precisely to remove vibration transmitted from body trims and surrounding parts.

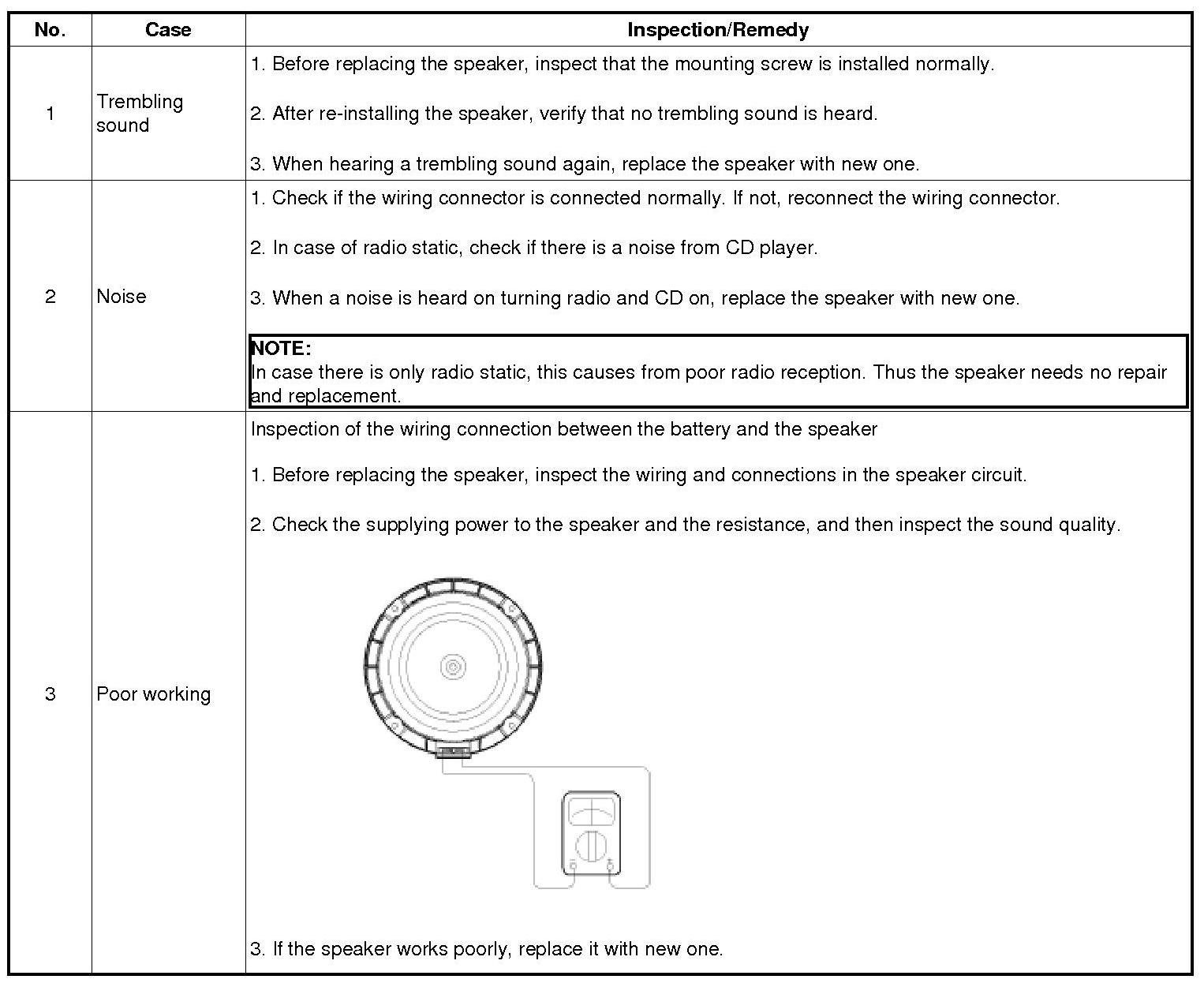

(2) Case Troubleshooting






CAUTION:
- During dealing of speaker
- Dropping or rough handling of the speaker can cause damage.
- Be careful not to cover water and oil over the speaker.
- Caution during dealing of speaker because the material of diaphragm is paper which is easy to be torn by impact and external force.
- When modifying audio system as customer pleases, this does electric damage to speaker.
- And, in this case the speakers are not covered by the manufacturer's warranty.

Removal

Front Speaker
1. Remove the front door trim.

2. Remove the front speaker (A) after drilling out the 4 rivets.





Rear Speaker
1. Remove the rear door trim.

2. Remove the rear speaker (A) after removing 4 rivets.





Crash Pad Center Speaker
1. Remove the center fascia panel (A).




2. Remove the crash pad center speaker grill (A).




3. Remove the crash pad center speaker (A) after loosening the mounting screws (2EA).





Tweeter Speaker (Front)
1. Remove the front door delta cover (A).





2. Remove the tweeter speaker (A) after disconnecting the connector.





Woofer Speaker
1. Remove the left luggage side trim.

2. Remove the woofer speaker connector (A).




3. Remove the woofer speaker (A) after removing 4 nuts.






Installation

Front speaker
1. Install the speaker to the speaker mounting hole in the door in-panel.
2. Reconnect the speaker connector.

Rear speaker
1. Install the speaker to the speaker mounting hole in the door in-panel.
2. Reconnect the speaker connector.

Crash pad center speaker
1. Reconnect the connector to the center speaker.
2. Install the center speaker.
3. Install the crash pad center speaker grill.

Tweeter speaker (Front)
1. Install the front tweeter speaker to the front door delta cover.
2. Reconnect the connector and then install the delta cover.

Woofer speaker
1. Install the woofer speaker to the left quarter inner panel.
2. Reconnect the connector
3. Install the left luggage side trim.

NOTE:
- Make sure that the amplifier connectors are plugged in properly.
- Check the audio system.
