W/Harness Inspection

4WD Control
U0122 Lost Communication With Vehicle Dynamics Control Module - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration,or damage.
3. Has a problem been found?





CAN communication circuit inspection (VDC ECM <-> 4WD ECM)
1. Ignition "OFF"
2. Disconnect 4WD ECM connector and VDC ECM connector
3. Measure the resistance between CAN-HIGH terminal of 4WD ECM harness connector and CAN-HIGH terminal of VDC ECM harness connector.
4. Measure the resistance between CAN-LOW terminal of 4WD ECM harness connector and CAN-LOW terminal of VDC ECM harness connector.

Specification :below 1Ohms

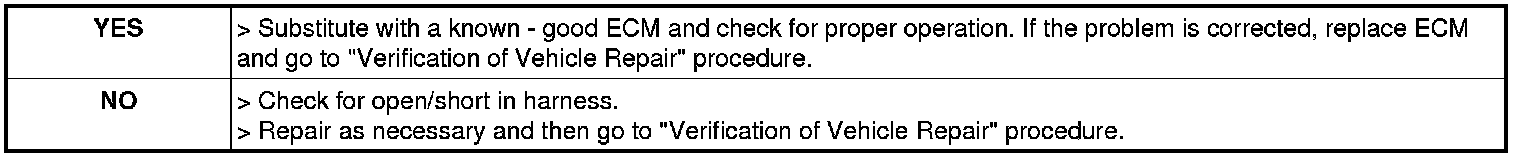

5. Is the measured resistance within specification ?
