Scantool Diagnostics

4WD Control
P1782 Ignition Voltage Fault - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC).
2. Start engine and turn the headight and the heatwire on.
3. Monitor the "BATTERY VOLTAGE" parameter on the scantool.
4. Maintaining ENG. RPM at 2,500RPM(idle) over 2 minutes.

Specification :more than 10 [V]
Specification :less than 17 [V]

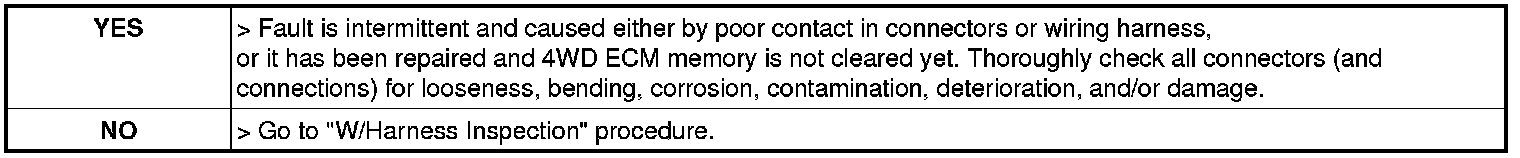

5. Is parameter within specifications?
