General Information

4WD Control
P1781 Battery Voltage Low - General Information

Component Location





General Description

The 4WD ECM monitors the battery voltage to determine, as a safety issue, whether this system can operate normally or not. The normal battery voltage range is essential for controlling this system as intended.

DTC Description

4WD ECM sets this code and turns on warning lamp if excessive low voltage caused by faulty alternator or poor connention in power supply circuit is detected.

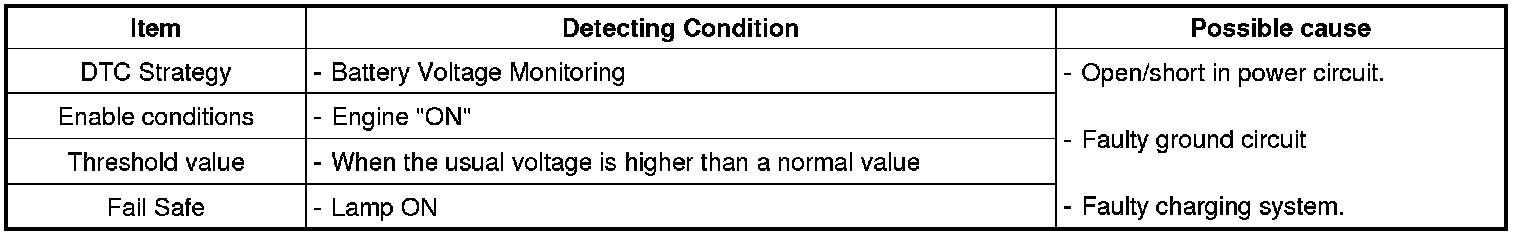

DTC Detecting Condition





Specification





Diagnostic Circuit Diagram
