Component Inspection

4WD Control
P1756 EMC Internal Error - Inspection/Repair:_:Component Inspection

Component Inspection

Check EMC
1. IG KEY OFF.
2. Disconnect EMC connector.
3. Measure resistance between EMC(+) terminal and EMC(-) terminal of EMC connector.(Components side)

Specification :About 2 - 2.6 Ohms (at 23°C)

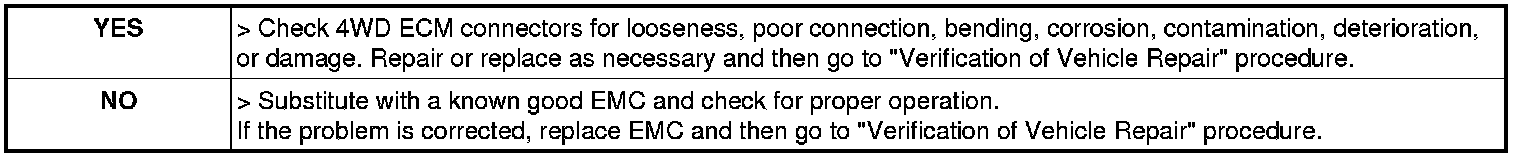

4. Is the measured value within specification ?
