Scantool Diagnostics

Smart Key Code Saving
P1696 Immobilizer-Authentication Fail - Scantool Diagnostics

Monitor Scantool Data

1. IG KEY "ON" & Engine "OFF".
2. Erase DTC after connecting GDS.
3. Check Smart Key ECM status parameter if DTC is retrieved.




Fig.1) It shows that 2(two) FOB key is registered, Smart Key ECM is learnt status.

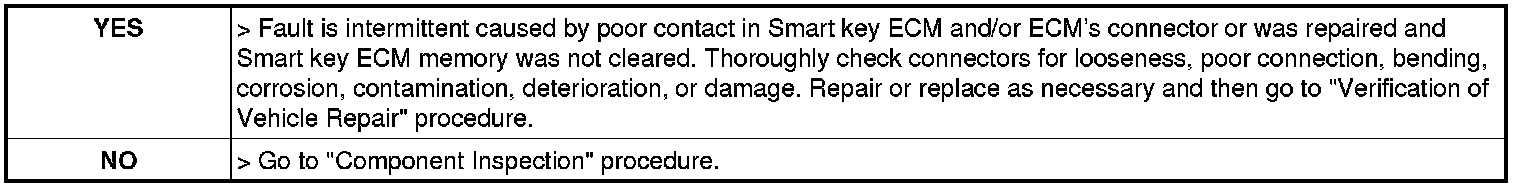

4. Is the smart Key ECM learnt ?
