Component Inspection

Immobilizer
P1692 Immobilizer Indicator Lamp Error - Inspection/Repair:_:Component Inspection

Component Inspection

Check immobilizer lamp.
1. IG KEY OFF

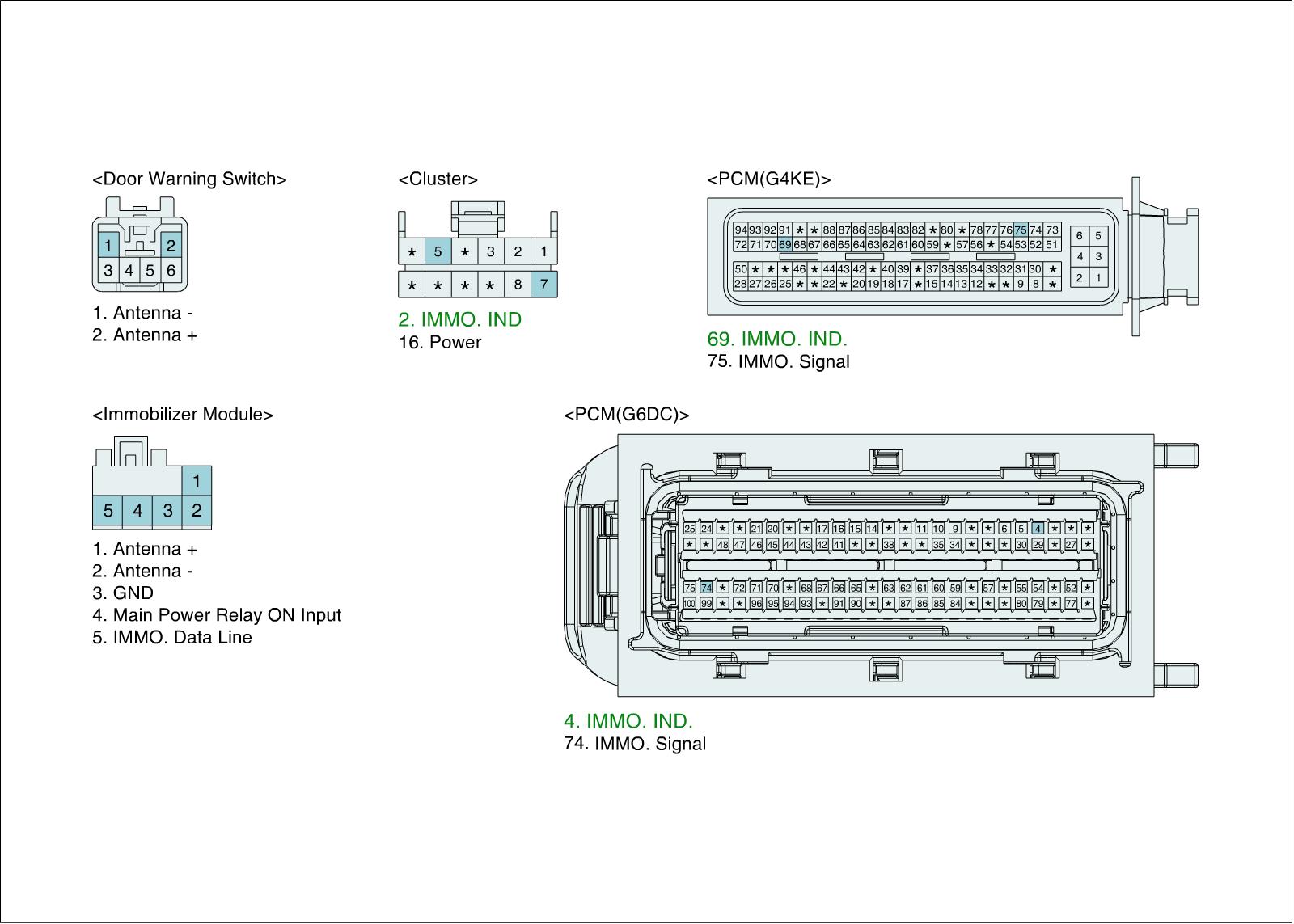

2. Connect SMARTRA connector and disconnect PCM connector

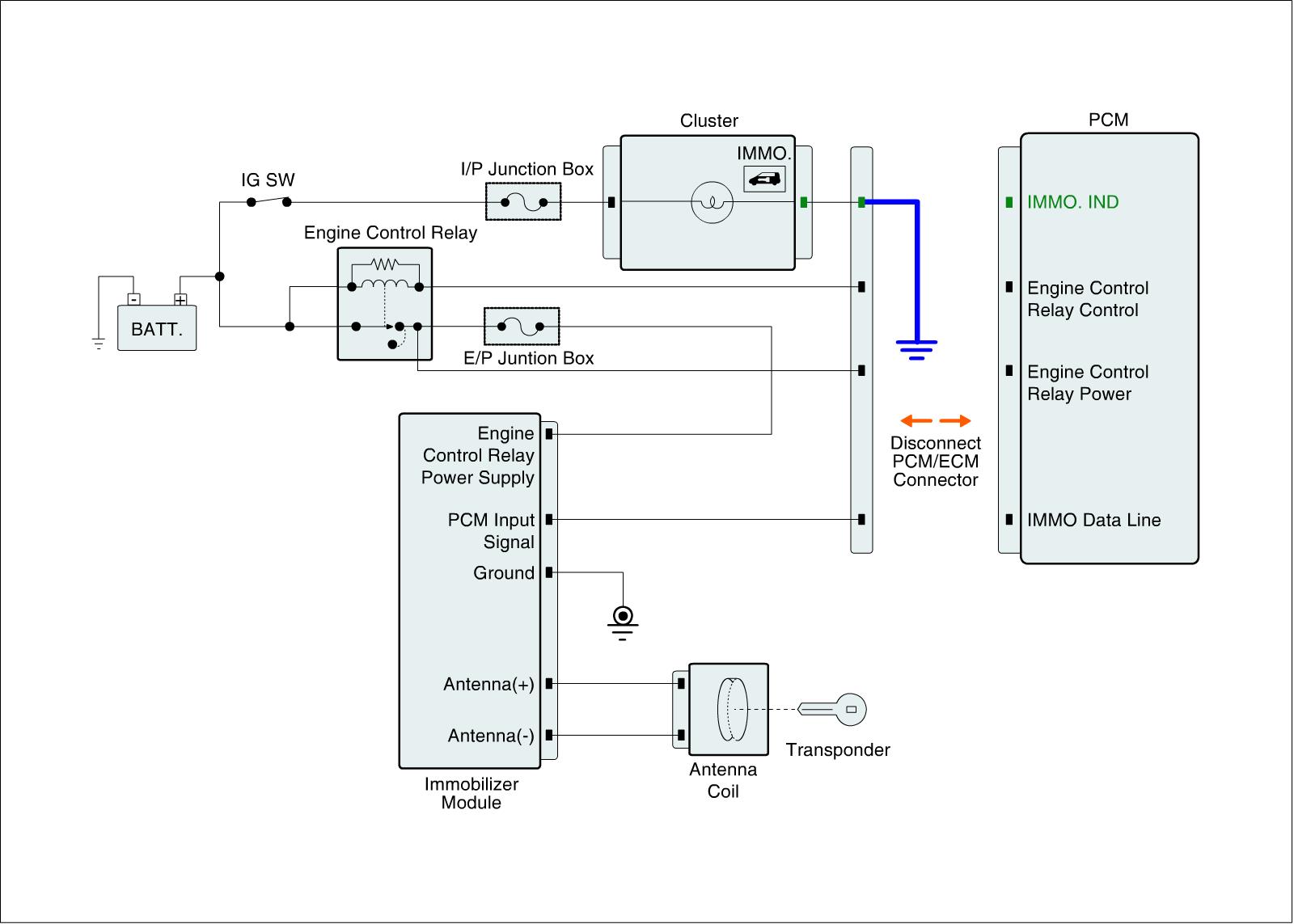

3. Ground indicator terminal of PCM harness connector with wire
4. IG KEY ON & Engine "OFF"

Specification :Immobilizer lamp "ON"

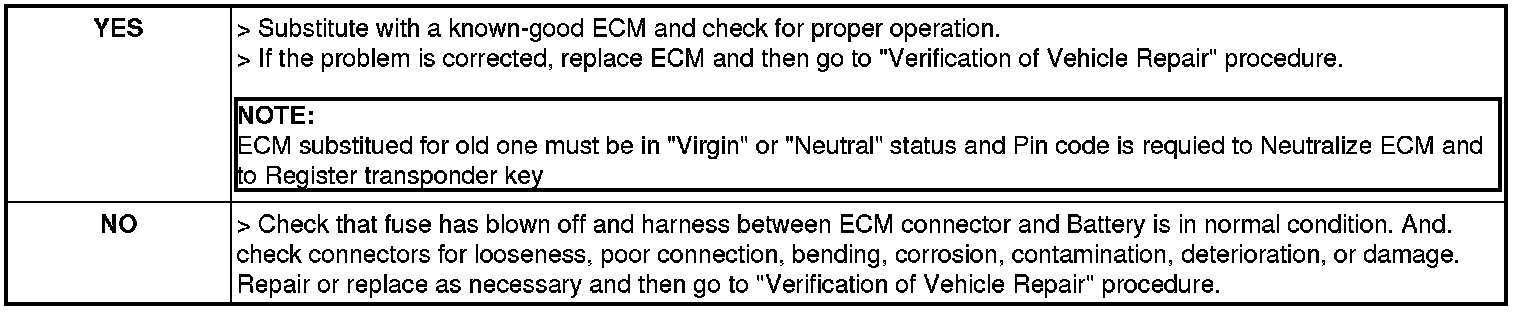

5. Is the Immobilizer lamp "ON" ?
