Scantool Diagnostics

Smart Key Code Saving
P1690 Immobilizer-Smartra No Response - Scantool Diagnostics

Monitor Scantool Data

1. IG KEY "ON" & Engine "OFF".
2. Erase DTC after connecting GDS.
3. Check Smart Key ECM status parameter if DTC is retrieved.




Fig.1) It shows that 2(two) FOB key is registered, Smart Key ECM is learnt status.

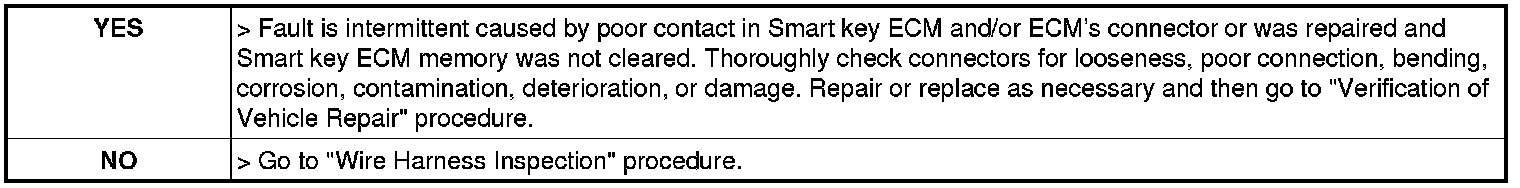

4. Is the smart Key ECM learnt ?
